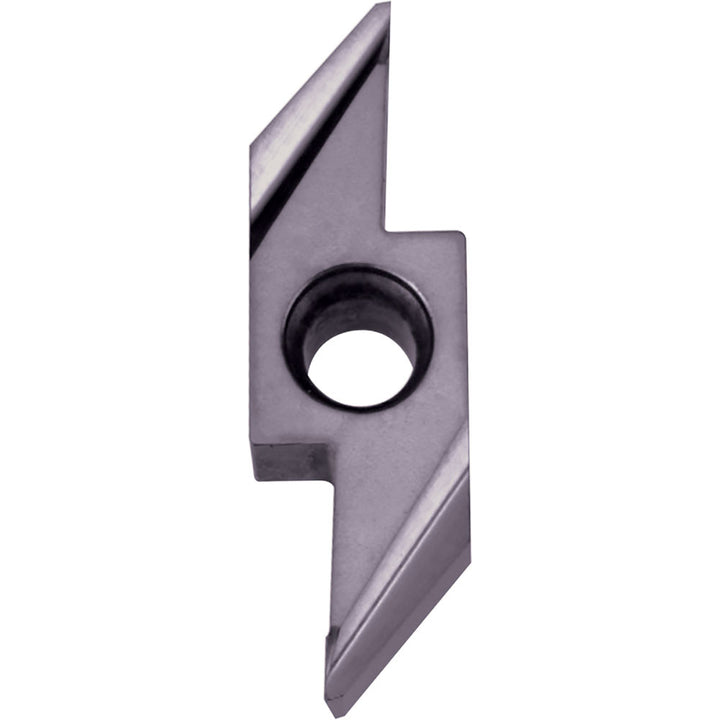

ABW23R5015 Solid Carbide Insert, Grade PR930, TiCN - Kyocera TKT00996

Kyocera

ABW23R5015 Solid Carbide Insert, Grade PR930, TiCN - Kyocera TKT00996

MFR# TKT00996ISO/ANSI# ABW23R5015Cat# ABW23R5015Series APBT

$55.10List $79.29 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeIrregular
GradePR930
MaterialSolid Carbide
CoatingTiCN

Description

The Kyocera TKT00996 is a ABW23R5015 solid carbide indexable insert, grade PR930, TiCN coated. Suited for steel.

Specifications

Ansi codeABW23R5015PR930
Coating finishTiCN
Coating processPVD
Corner radius0.0590
Cutter series compatibilityAABWR-JXF; AABWR-F; SABWR-JXF; SABWR-F
Hole diameter0.1181
Inscribed circle0.2756
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew; Clamp
Insert materialSolid Carbide
Insert shapeIrregular
Insert size23
Insert size code23-5015
Insert styleABW
Iso codeABW23R5015
Length0.9212
Length range0.0000 to 0.3200
Manufacturers catalog numberABW23R5015
Manufacturer gradePR930
Material applicationSteel; Stainless Steel
Material gradeMicrograin
Multi use toolNo
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle15
Secondary workpiece materialStainless Steel
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.2756
