Kyocera

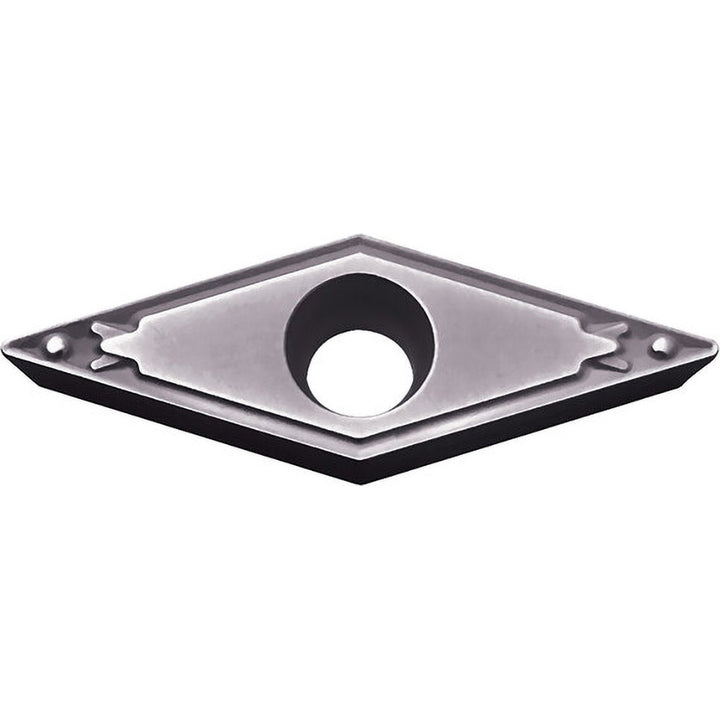

VCMT080202HQ Carbide Insert, Grade PR930, TiCN - Kyocera TKT03790
MFR# TKT03790ISO/ANSI# VCMT080202Series ISOI
$20.40List $29.35
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/16
ShapeV - Diamond (Rhombic) 35-Deg
GradePR930
MaterialCarbide
CoatingTiCN
Description
The Kyocera TKT03790 is a VCMT080202HQ carbide indexable insert, grade PR930, TiCN coated. Suited for steel.
Specifications
Ansi insert codeVCMT151505
Ansi size code151505
Chip breakerHQ
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.0906
Included angle35
Industry standard numberVCMT151505HQPR930
Inscribed circle in3/16
Insert handNeutral
Insert holding methodScrew
Insert length0.6304
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code151505
Insert styleVCMT
Insert thickness in3/32
Iso codeVCMT080202HQ
Iso insert codeVCMT080202
Iso size code080202
Length range0.6000 - 0.6500
Manufacturers catalog numberTKT03790
Manufacturer gradePR930
Material gradeSuper Micrograin
Maximum depth of cut0.2101
Multi use applicationBack Boring; Copying; External Turning; Facing; Internal Facing; Profiling; Undercutting
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle15
Relief angle7
Secondary workpiece materialStainless Steel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/16
Wiper edgeNo
