Kyocera

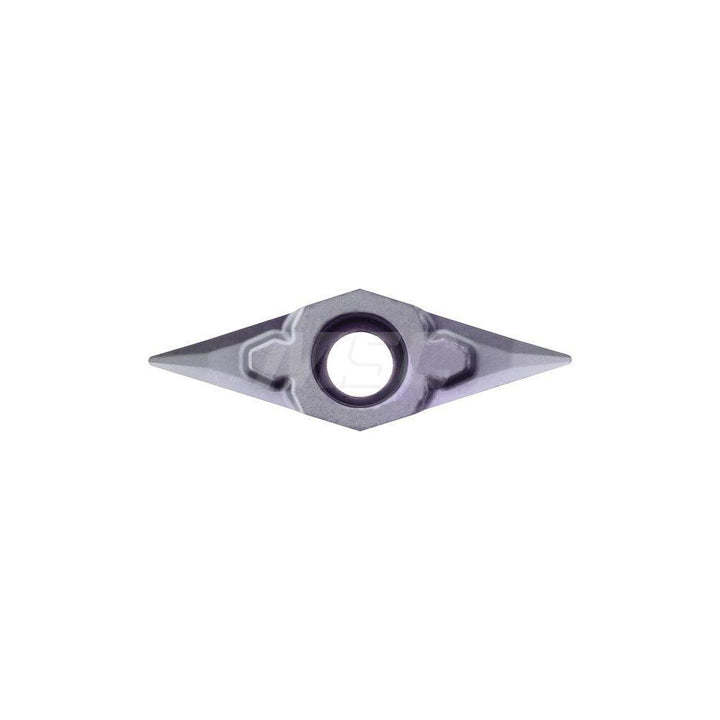

VPGT080202CK Carbide Insert, Grade PR930, TiCN - Kyocera TKT03955
MFR# TKT03955ISO/ANSI# VPGT151505CKPR930Series ISOI
$27.32List $39.31
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/16
ShapeDiamond 35
GradePR930
MaterialCarbide
CoatingTiCN
Description
The Kyocera TKT03955 is a VPGT080202CK carbide indexable insert, grade PR930, TiCN coated. Suited for steel.
Specifications
Chip breakerCK
Clearance codeP
Coating finishTiCN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Hole diameter0.0906
Included angle35degree
Industry standard numberVPGT151505CKPR930
Inscribed circle in3/16
Insert handNeutral
Insert holding methodScrew
Insert length0.6304
Insert materialCarbide
Insert shapeDiamond 35
Insert size code151505
Insert styleVPGT
Insert thickness in3/32
Iso codeVPGT080202CK
Length range0.6000 - 0.6500
Manufacturers catalog numberTKT03955
Manufacturer gradePR930
Material gradeSuper Micrograin
Maximum depth of cut0.2101
Multi use applicationBack Boring; Copying; External Turning; Facing; Internal Facing; Profiling; Undercutting
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle20
Relief angle11
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeG
Width in3/16in
Wiper edgeNo
