Kyocera

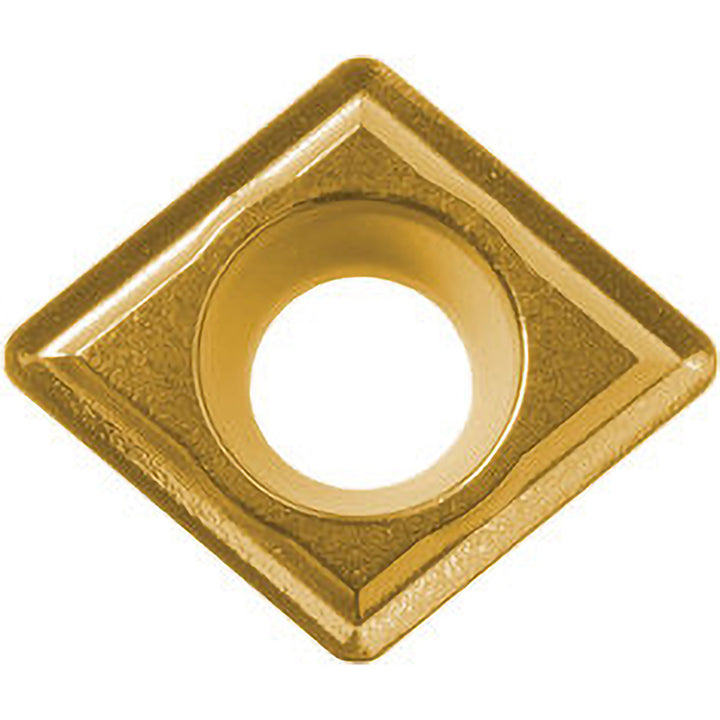

CCGT09T304 Cermet Insert, Grade PV90, TiN - Kyocera TKZ00082
MFR# TKZ00082ISO/ANSI# CCGT3251PV90Series ISOI
$20.02List $28.82
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradePV90
MaterialCermet
CoatingTiN
Description
The Kyocera TKZ00082 is a CCGT09T304 cermet indexable insert, grade PV90, TiN coated. Suited for steel, stainless steel.
Specifications
Clearance codeC
Coating finishTiN
Coating processUncoated
Corner radius in1/64
Full radiusNo
Hole diameter0.1732
Included angle80degree
Industry standard numberCCGT3251PV90
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCermet
Insert shapeDiamond 80
Insert size code3251
Insert styleCCGT
Insert thickness in5/32
Iso codeCCGT09T304
Length range0.3000 - 0.4000
Manufacturers catalog numberTKZ00082
Manufacturer gradePV90
Material gradeP01; P10; P20; M01; M10; M20
Maximum depth of cut0.1250
Multi use applicationBoring; External Turning; Facing; Internal Facing; Sub-Spindle
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
