Kyocera

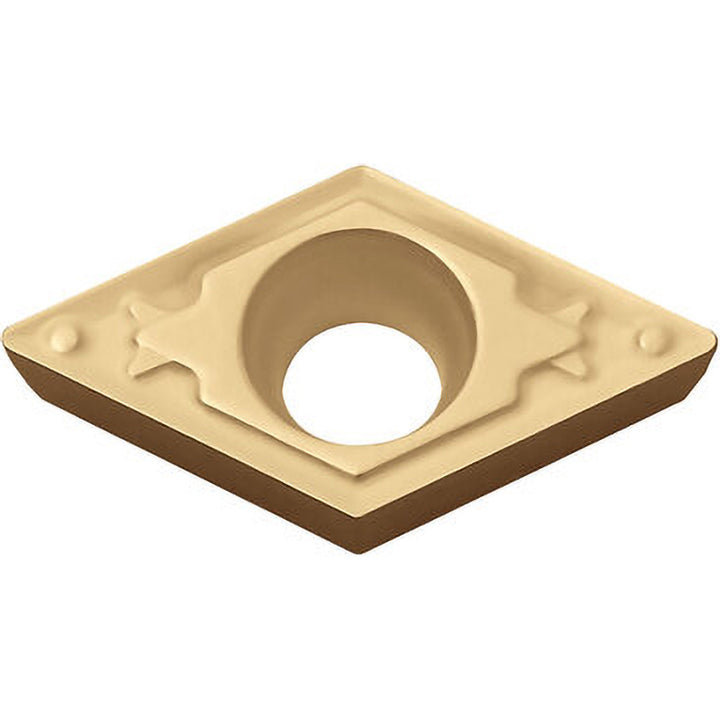

DCMT070204HQ Cermet Insert, Grade PV90, TiN - Kyocera TKZ00601
MFR# TKZ00601ISO/ANSI# DCMT2151HQPV90Series ISOI
$17.41List $24.62
Save 29%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 55
GradePV90
MaterialCermet
CoatingTiN
Description
The Kyocera TKZ00601 is a DCMT070204HQ cermet indexable insert, grade PV90, TiN coated. Suited for steel, stainless steel.
Specifications
Chip breakerHQ
Clearance codeC
Coating finishTiN
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1102
Included angle55degree
Industry standard numberDCMT2151HQPV90
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.6140
Insert materialCermet
Insert shapeDiamond 55
Insert size code2151
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT070204HQ
Length range0.6000 - 0.6500
Manufacturers catalog numberTKZ00601
Manufacturer gradePV90
Material gradeP01; P10; P20; M01; M10; M20
Maximum depth of cut0.2047
Multi use applicationBack Boring; Copying; External Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle15
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
