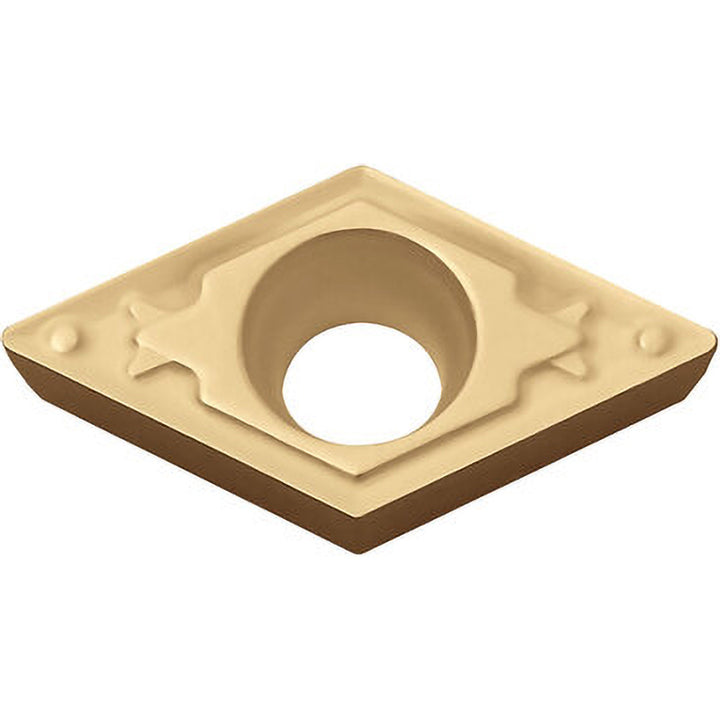

DCMT11T302HQ Cermet Insert, Grade PV90, TiN - Kyocera TKZ00620

Kyocera

DCMT11T302HQ Cermet Insert, Grade PV90, TiN - Kyocera TKZ00620

MFR# TKZ00620ISO/ANSI# DCMT32505HQPV90Series ISOI

$18.20List $26.19 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradePV90
MaterialCermet
CoatingTiN

Description

The Kyocera TKZ00620 is a DCMT11T302HQ cermet indexable insert, grade PV90, TiN coated. Suited for steel, stainless steel.

Specifications

Chip breakerHQ
Clearance codeC
Coating finishTiN
Coating processUncoated
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle55degree
Industry standard numberDCMT32505HQPV90
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9140
Insert materialCermet
Insert shapeDiamond 55
Insert size code32505
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T302HQ
Length range0.7000 - 10.0000
Manufacturers catalog numberTKZ00620
Manufacturer gradePV90
Material gradeP01; P10; P20; M01; M10; M20
Maximum depth of cut0.3047
Multi use applicationBack Boring; Copying; External Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle15
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
