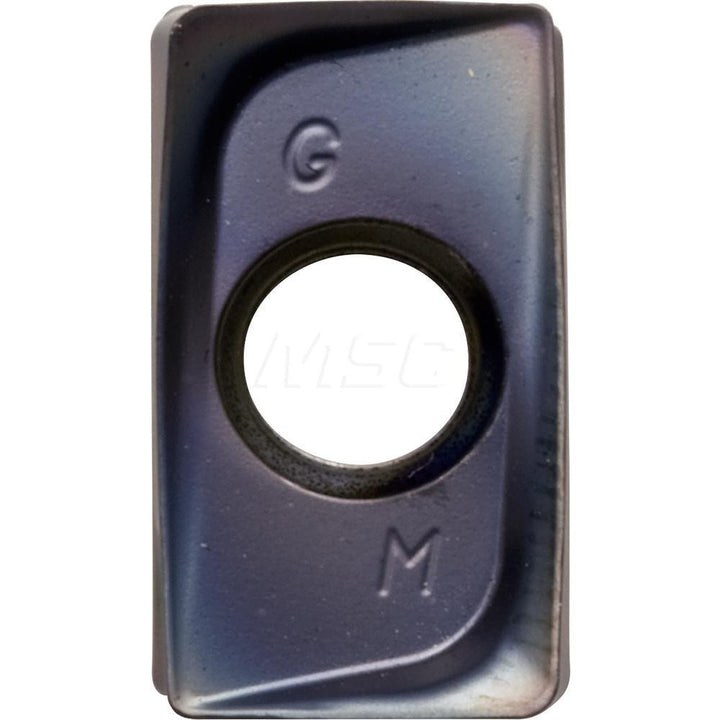

LOMU100408ER-GM Solid Carbide Insert, Grade PR1525, MEGACOAT NANO - Kyocera TLB04350

Kyocera

LOMU100408ER-GM Solid Carbide Insert, Grade PR1525, MEGACOAT NANO - Kyocera TLB04350

MFR# TLB04350ISO/ANSI# LOMU100408ER-GMCat# LOMU100408ERGMSeries MEW

$20.32List $29.23 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradePR1525
MaterialSolid Carbide
CoatingMEGACOAT NANO

Description

The Kyocera TLB04350 is a LOMU100408ER-GM solid carbide indexable insert, grade PR1525, MEGACOAT NANO coated. Suited for steel.

Specifications

Ansi codeLOMU100408ERGMPR1525
Chip breakerER-GM
Coating finishMEGACOAT NANO
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMEW; MEWH
Cutting edge styleHoned
Hole diameter0.1339
Included angle degree90
Inscribed circle0.2598
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size10
Insert size code100408
Insert styleLOMU
Iso codeLOMU100408ER-GM
Length0.4291
Length range0.4000 to 0.4500
Manufacturers catalog numberLOMU100408ERGM
Manufacturer gradePR1525
Material applicationSteel; Stainless Steel
Maximum depth of cut0.4291
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakePositive
Secondary workpiece materialStainless Steel
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1575
Thickness range0.1500 to 0.1750
Width0.2598
