PNMU1205ANER-GM Solid Carbide Insert, Grade PR1525, MEGACOAT NANO - Kyocera TLB05050

Kyocera

PNMU1205ANER-GM Solid Carbide Insert, Grade PR1525, MEGACOAT NANO - Kyocera TLB05050

MFR# TLB05050ISO/ANSI# PNMU1205ANER-GMCat# PNMU1205ANERGMSeries MFPN

$29.00List $41.73 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC45/64
ShapePentagon
GradePR1525
MaterialSolid Carbide
CoatingMEGACOAT NANO

Description

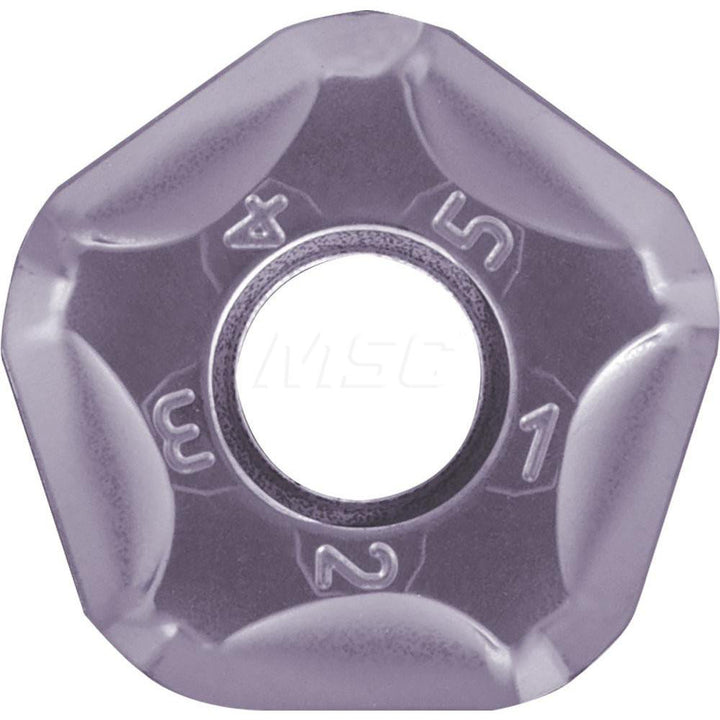

The Kyocera TLB05050 is a PNMU1205ANER-GM solid carbide indexable insert, grade PR1525, MEGACOAT NANO coated. Suited for steel.

Specifications

Ansi codePNMU1205ANERGMPR1525
Chip breakerANER-GM
Coating finishMEGACOAT NANO
Coating processPVD
Cutter series compatibilityMFPNR
Cutting edge styleHoned
Hole diameter0.2441
Included angle degree108
Inscribed circle in45/64
Inscribed circle range0.7000 to 1.0000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapePentagon
Insert size12
Insert size code1205
Insert stylePNMU
Iso codePNMU1205ANER-GM
Length0.7079
Length range0.7000 to 0.9000
Manufacturers catalog numberPNMU1205ANERGM
Manufacturer gradePR1525
Material applicationSteel; Stainless Steel
Multi use toolYes
Number of cutting edges10
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
Single or double sided insertDouble
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width0.7039
