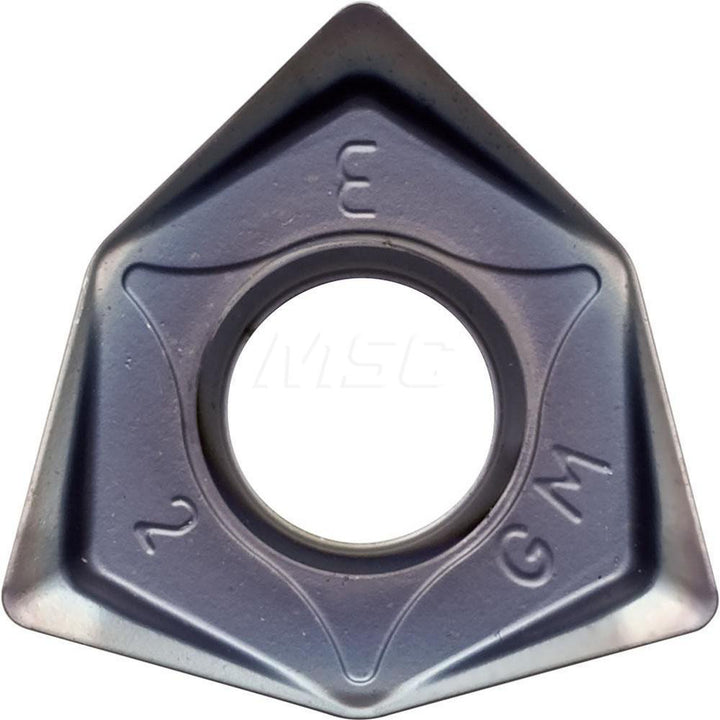

WNMU080608EN-GM Solid Carbide Insert, Grade PR1525, MEGACOAT NANO - Kyocera TLB09310
MFR# TLB09310ISO/ANSI# WNMU080608EN-GMCat# WNMU080608ENGMSeries MFWN
$24.93List $35.87
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradePR1525
MaterialSolid Carbide
CoatingMEGACOAT NANO
Description
The Kyocera TLB09310 is a WNMU080608EN-GM solid carbide indexable insert, grade PR1525, MEGACOAT NANO coated. Suited for steel.
Specifications
Ansi codeWNMU080608ENGMPR1525
Chip breakerEN-GM
Coating finishMEGACOAT NANO
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMFWN
Cutting edge styleHoned
Hole diameter0.2441
Included angle degree80
Inscribed circle0.5520
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size08
Insert size code080608
Insert styleWNMU
Iso codeWNMU080608EN-GM
Length0.5520
Length range0.5000 to 0.6000
Manufacturers catalog numberWNMU080608ENGM
Manufacturer gradePR1525
Material applicationSteel; Stainless Steel
Maximum depth of cut0.5208
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2620
Thickness range0.2500 to 0.3500
Width0.5520
