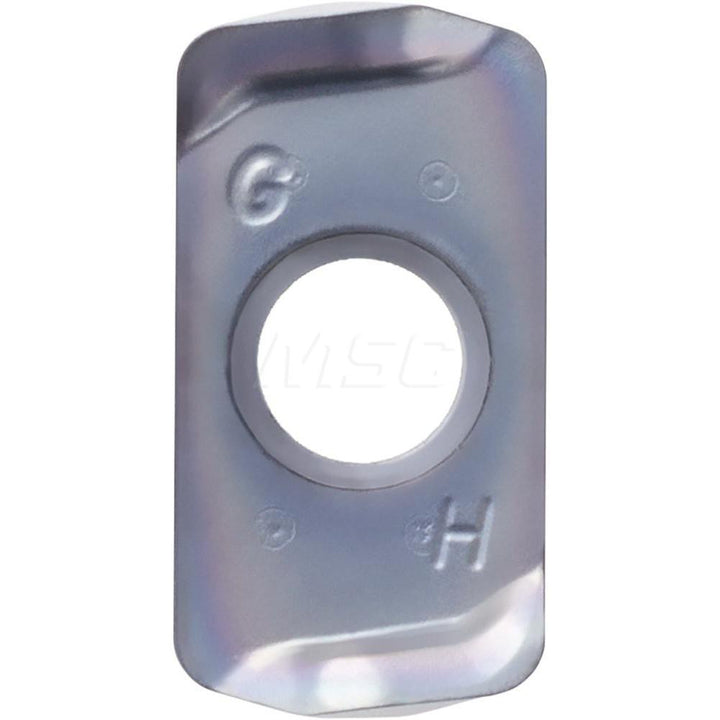

LOGU030310ER-GH Solid Carbide Insert, Grade PR1525, MEGACOAT NANO - Kyocera TLB40007
MFR# TLB40007ISO/ANSI# LOGU030310ER-GHCat# LOGU030310ERGHSeries MFHI
$21.92List $31.00
Save 29%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradePR1525
MaterialSolid Carbide
CoatingMEGACOAT NANO
Description
The Kyocera TLB40007 is a LOGU030310ER-GH solid carbide indexable insert, grade PR1525, MEGACOAT NANO coated. Suited for steel.
Specifications
Ansi codeLOGU030310ERGHPR1525
Chip breakerER-GH
Coating finishMEGACOAT NANO
Coating processPVD
Corner radius0.0390
Cutter series compatibilityMFH
Cutting edge effective length0.4690
Cutting edge styleHoned
Hole diameter0.1358
Included angle degree90
Inscribed circle0.2441
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size03
Insert size code030310
Insert styleLOGU
Iso codeLOGU030310ER-GH
Length in15/32
Length of cut (mm)11.90
Length range0.4500 to 0.5000
Manufacturers catalog numberLOGU030310ERGH
Manufacturer gradePR1525
Material applicationSteel; Steel
Maximum depth of cut0.4295
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakePositive
Secondary workpiece materialSteel
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.2441
