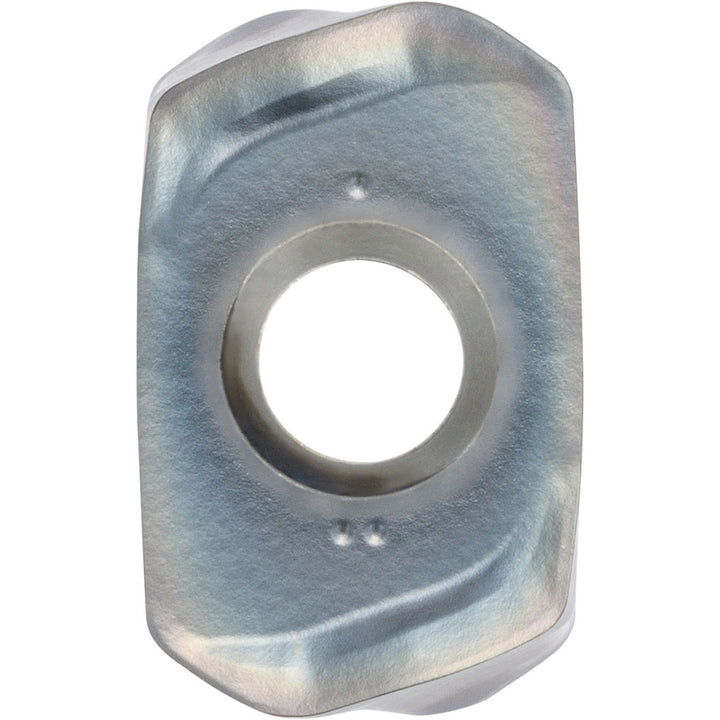

LOMU040410ER-GM Solid Carbide Insert, Grade PR1525, MEGACOAT NANO - Kyocera TLB40152

Kyocera

LOMU040410ER-GM Solid Carbide Insert, Grade PR1525, MEGACOAT NANO - Kyocera TLB40152

MFR# TLB40152ISO/ANSI# LOMU040410ER-GMCat# LOMU040410ERGMSeries MFHM

$25.48List $36.66 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradePR1525
MaterialSolid Carbide
CoatingMEGACOAT NANO

Description

The Kyocera TLB40152 is a LOMU040410ER-GM solid carbide indexable insert, grade PR1525, MEGACOAT NANO coated. Suited for steel.

Specifications

Ansi codeLOMU040410ERGMPR1525
Chip breakerER-GM
Coating finishMEGACOAT NANO
Coating processPVD
Corner radius0.0390
Cutter series compatibilityMFH
Cutting edge styleHoned
Hole diameter0.1614
Included angle degree90
Inscribed circle0.3583
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size04
Insert size code040410
Insert styleLOMU
Iso codeLOMU040410ER-GM
Length0.5709
Length of cut (mm)14.50
Length range0.5000 to 0.6000
Manufacturers catalog numberLOMU040410ERGM
Manufacturer gradePR1525
Material applicationSteel; Stainless Steel; Hard Material
Maximum depth of cut0.5709
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakePositive
Rake angle0
Secondary workpiece materialStainless Steel; Hardened Material
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1732
Thickness range0.1500 to 0.1750
Width0.3583
