Kyocera

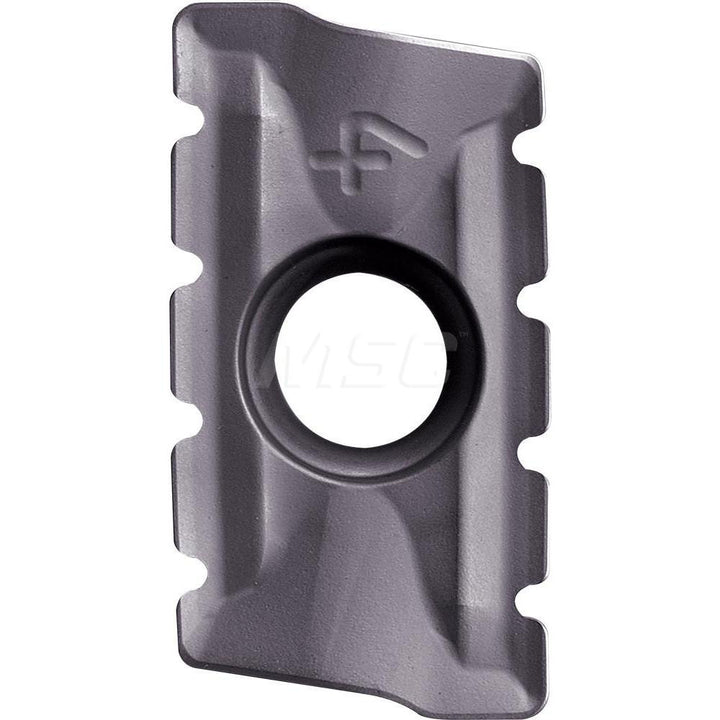

BDMT170408ER-N4 Solid Carbide Insert, Grade PR1535, MEGACOAT NANO - Kyocera TLC00415
MFR# TLC00415ISO/ANSI# BDMT170408ER-N4Cat# BDMT170408ERN4Series MEC
$23.13List $33.28
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradePR1535
MaterialSolid Carbide
CoatingMEGACOAT NANO
Description
The Kyocera TLC00415 is a BDMT170408ER-N4 solid carbide indexable insert, grade PR1535, MEGACOAT NANO coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi codeBDMT170408ERN4PR1535
Chip breakerER-N4
Coating finishMEGACOAT NANO
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMECH
Cutting edge styleHoned
Hole diameter0.1732
Included angle degree82
Inscribed circle0.3780
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size17
Insert size code170408
Insert styleBDMT
Iso codeBDMT170408ER-N4
Length0.6693
Length range0.6500 to 0.7000
Manufacturers catalog numberBDMT170408ERN4
Manufacturer gradePR1535
Material applicationStainless Steel; Superalloys & Titanium; Steel; Stainless Steel; Cast Iron; Superalloys & Titanium
Maximum depth of cut0.6693
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Relief angle18
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1929
Thickness range0.1850 to 0.2000
Width0.3780
