Kyocera

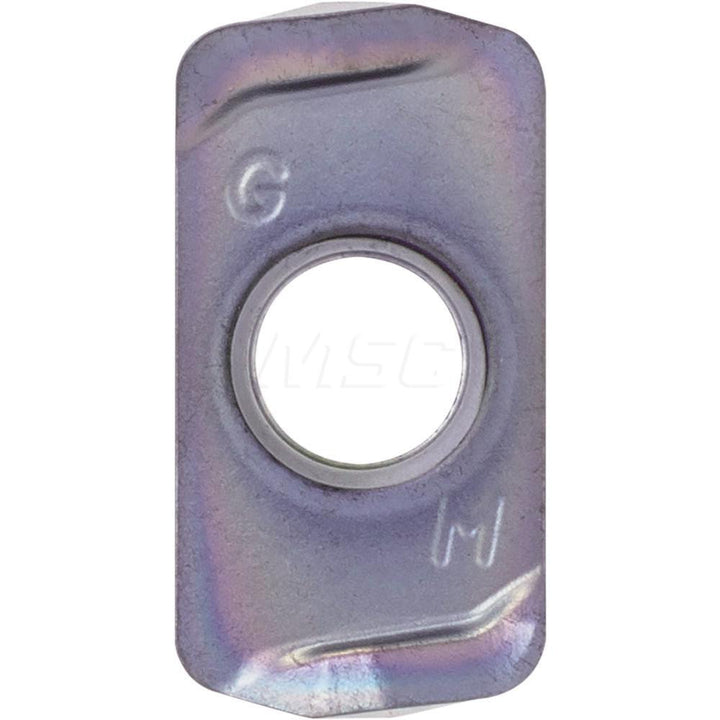

LOGU030310ER-GM Solid Carbide Insert, Grade PR1535, MEGACOAT NANO - Kyocera TLC04200
MFR# TLC04200ISO/ANSI# LOGU030310ER-GMCat# LOGU030310ERGMSeries MFHI
$19.58List $28.18
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradePR1535
MaterialSolid Carbide
CoatingMEGACOAT NANO
Description
The Kyocera TLC04200 is a LOGU030310ER-GM solid carbide indexable insert, grade PR1535, MEGACOAT NANO coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi codeLOGU030310ERGMPR1535
Chip breakerER-GM
Coating finishMEGACOAT NANO
Coating processPVD
Corner radius0.0390
Cutter series compatibilityMFH
Cutting edge effective length0.4690
Cutting edge styleHoned
Hole diameter0.1358
Included angle degree90
Inscribed circle0.2441
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size03
Insert size code030310
Insert styleLOGU
Iso codeLOGU030310ER-GM
Length in15/32
Length range0.4500 to 0.5000
Manufacturers catalog numberLOGU030310ERGM
Manufacturer gradePR1535
Material applicationStainless Steel; Superalloys & Titanium; Steel; Stainless Steel; Cast Iron; Superalloys & Titanium
Maximum depth of cut0.4295
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.2441
