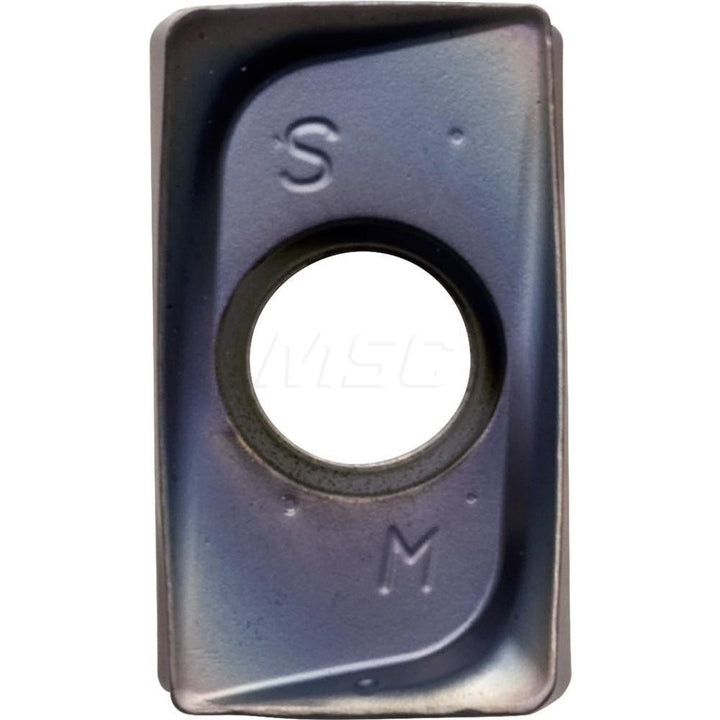

LOMU100408ER-SM Solid Carbide Insert, Grade PR1535, MEGACOAT NANO - Kyocera TLC04351
MFR# TLC04351ISO/ANSI# LOMU100408ER-SMCat# LOMU100408ERSMSeries MEW
$20.32List $29.23
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradePR1535
MaterialSolid Carbide
CoatingMEGACOAT NANO
Description
The Kyocera TLC04351 is a LOMU100408ER-SM solid carbide indexable insert, grade PR1535, MEGACOAT NANO coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi codeLOMU100408ERSMPR1535
Chip breakerER-SM
Coating finishMEGACOAT NANO
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMEW; MEWH
Cutting edge styleHoned
Hole diameter0.1339
Included angle degree90
Inscribed circle0.2598
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size10
Insert size code100408
Insert styleLOMU
Iso codeLOMU100408ER-SM
Length0.4291
Length range0.4000 to 0.4500
Manufacturers catalog numberLOMU100408ERSM
Manufacturer gradePR1535
Material applicationStainless Steel; Superalloys & Titanium; Steel; Stainless Steel; Cast Iron; Superalloys & Titanium
Maximum depth of cut0.4291
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1575
Thickness range0.1500 to 0.1750
Width0.2598
