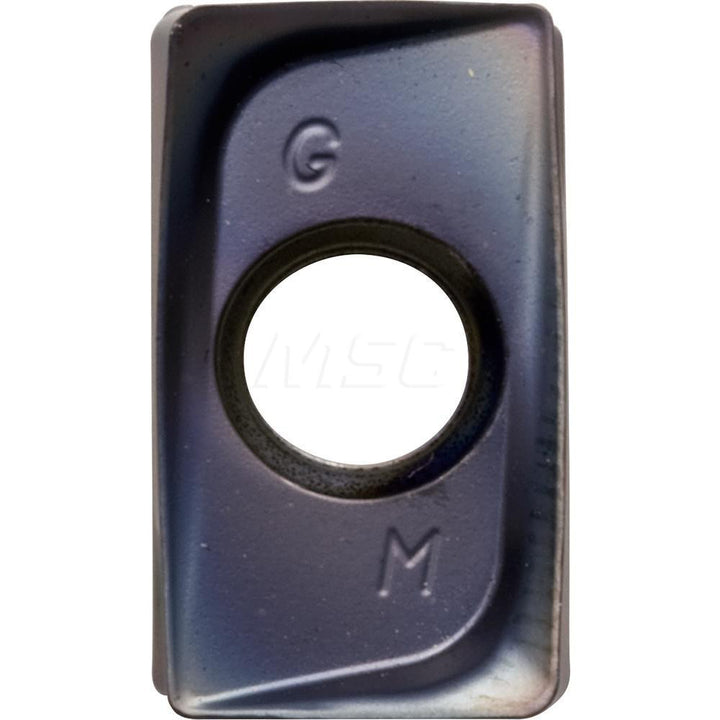

LOMU150508ER-GM Solid Carbide Insert, Grade PR1535, MEGACOAT NANO - Kyocera TLC04356
MFR# TLC04356ISO/ANSI# LOMU150508ER-GMCat# LOMU150508ERGMSeries MEW
$23.61List $33.97
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradePR1535
MaterialSolid Carbide
CoatingMEGACOAT NANO
Description
The Kyocera TLC04356 is a LOMU150508ER-GM solid carbide indexable insert, grade PR1535, MEGACOAT NANO coated. Suited for stainless steel.
Specifications
Ansi codeLOMU150508ERGMPR1535
Chip breakerER-GM
Coating finishMEGACOAT NANO
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMEW; MEWH
Cutting edge styleHoned
Hole diameter0.1890
Included angle degree90
Inscribed circle0.3622
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size15
Insert size code150508
Insert styleLOMU
Iso codeLOMU150508ER-GM
Length0.6181
Length range0.6000 to 0.6500
Manufacturers catalog numberLOMU150508ERGM
Manufacturer gradePR1535
Material applicationStainless Steel; Steel; Stainless Steel; Cast Iron; Superalloys & Titanium
Maximum depth of cut0.6181
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakePositive
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2205
Thickness range0.2200 to 0.2350
Width0.3622
