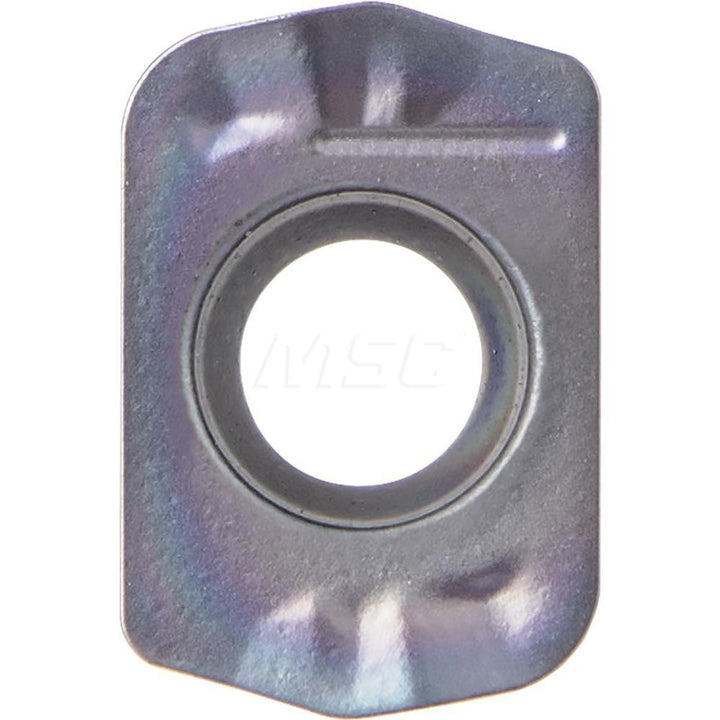

LPGT010210ER-GM Solid Carbide Insert, Grade PR1535, MEGACOAT NANO - Kyocera TLC04450

Kyocera

LPGT010210ER-GM Solid Carbide Insert, Grade PR1535, MEGACOAT NANO - Kyocera TLC04450

MFR# TLC04450ISO/ANSI# LPGT010210ER-GMCat# LPGT010210ERGMSeries MFHO

$15.16List $21.82 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradePR1535
MaterialSolid Carbide
CoatingMEGACOAT NANO

Description

The Kyocera TLC04450 is a LPGT010210ER-GM solid carbide indexable insert, grade PR1535, MEGACOAT NANO coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi codeLPGT010210ERGMPR1535
Chip breakerER-GM
Coating finishMEGACOAT NANO
Coating processPVD
Corner radius0.0390
Cutter series compatibilityMFH
Cutting edge styleHoned
Hole diameter0.0827
Included angle degree90
Inscribed circle0.1650
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size01
Insert size code010210
Insert styleLPGT
Iso codeLPGT010210ER-GM
Length0.2465
Length of cut (mm)6.26
Length range0.0000 to 0.3200
Manufacturers catalog numberLPGT010210ERGM
Manufacturer gradePR1535
Material applicationStainless Steel; Superalloys & Titanium; Steel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Maximum depth of cut0.2075
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Relief angle11
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Material; Superalloys
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.0862
Thickness range0.0000 to 0.1000
Width0.1650
