Kyocera

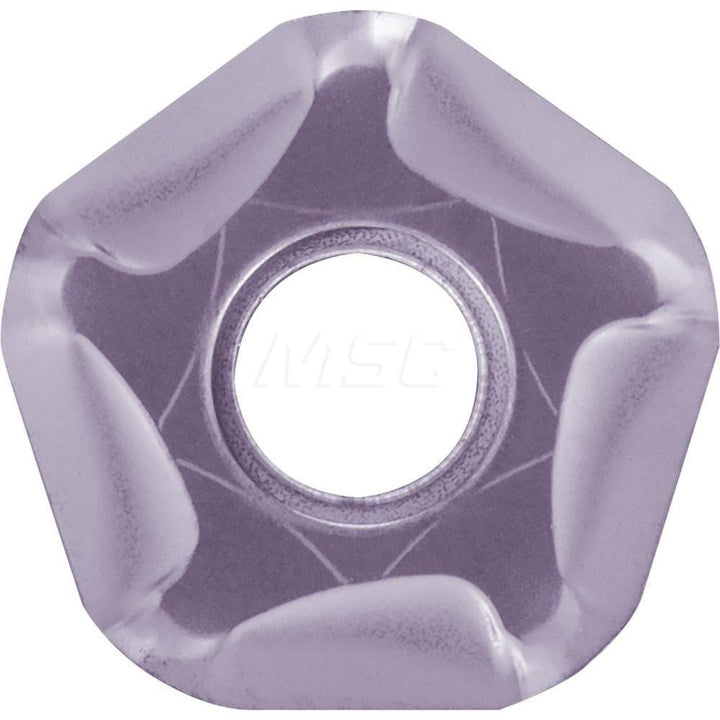

PNMU1205ANER-SM Solid Carbide Insert, Grade PR1535, MEGACOAT NANO - Kyocera TLC05054
MFR# TLC05054ISO/ANSI# PNMU1205ANER-SMCat# PNMU1205ANERSMSeries MFPN
$29.00List $41.73
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapePentagon
GradePR1535
MaterialSolid Carbide
CoatingMEGACOAT NANO
Description
The Kyocera TLC05054 is a PNMU1205ANER-SM solid carbide indexable insert, grade PR1535, MEGACOAT NANO coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi codePNMU1205ANERSMPR1535
Chip breakerANER-SM
Coating finishMEGACOAT NANO
Coating processPVD
Cutter series compatibilityMFPNR
Cutting edge styleHoned
Hole diameter0.2441
Included angle degree108
Inscribed circle0.7079
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapePentagon
Insert size12
Insert size code1205
Insert stylePNMU
Iso codePNMU1205ANER-SM
Length0.7079
Length range0.7000 to 0.9000
Manufacturers catalog numberPNMU1205ANERSM
Manufacturer gradePR1535
Material applicationStainless Steel; Superalloys & Titanium; Steel; Stainless Steel; Cast Iron; Superalloys & Titanium
Multi use toolYes
Number of cutting edges10
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys
Single or double sided insertDouble
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width0.7079
