Kyocera

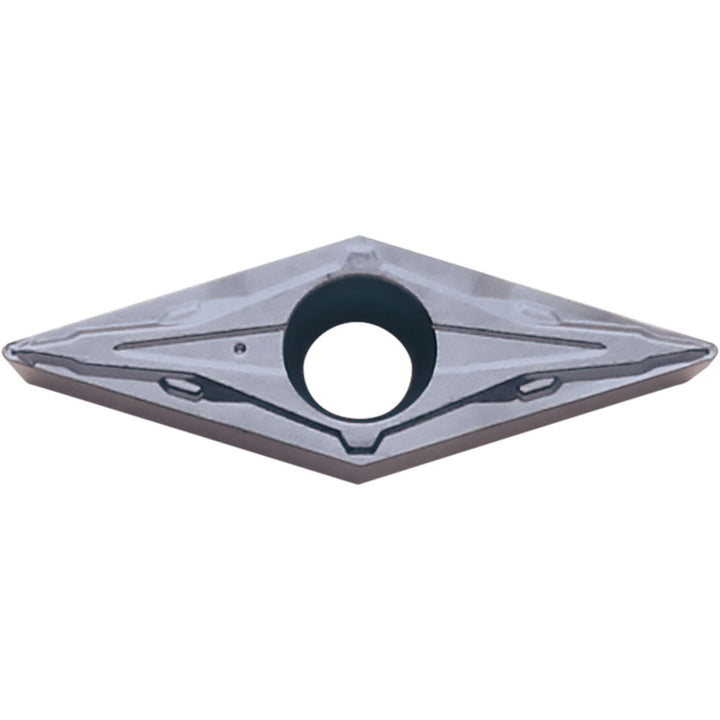

VCMT160404PP Carbide Insert, Grade PR1535, MEGACOAT NANO - Kyocera TLC07702
MFR# TLC07702ISO/ANSI# VCMT160404Series ISOI
$20.40List $29.35
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradePR1535
MaterialCarbide
CoatingMEGACOAT NANO
Description
The Kyocera TLC07702 is a VCMT160404PP carbide indexable insert, grade PR1535, MEGACOAT NANO coated. Suited for stainless steel, superalloy.
Specifications
Ansi insert codeVCMT331
Ansi size code331
Chip breakerPP
Chip breaker operationFinishing
Clearance codeC
Coating finishMEGACOAT NANO
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle35
Industry standard numberVCMT331PPPR1535
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3080
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVCMT
Insert thickness in3/16
Iso codeVCMT160404PP
Iso insert codeVCMT160404
Iso size code160404
Length range0.7000 - 10.0000
Manufacturers catalog numberTLC07702
Manufacturer gradePR1535
Material gradeM30; M40; S20; S30
Maximum depth of cut0.4360
Multi use applicationBack Boring; Copying; External Turning; Facing; Internal Facing; Profiling; Undercutting
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloy
RakePositive
Rake angle10
Relief angle7
Side clearancePositive
Tolerance codeM
Width in3/8
Wiper edgeNo
