Kyocera

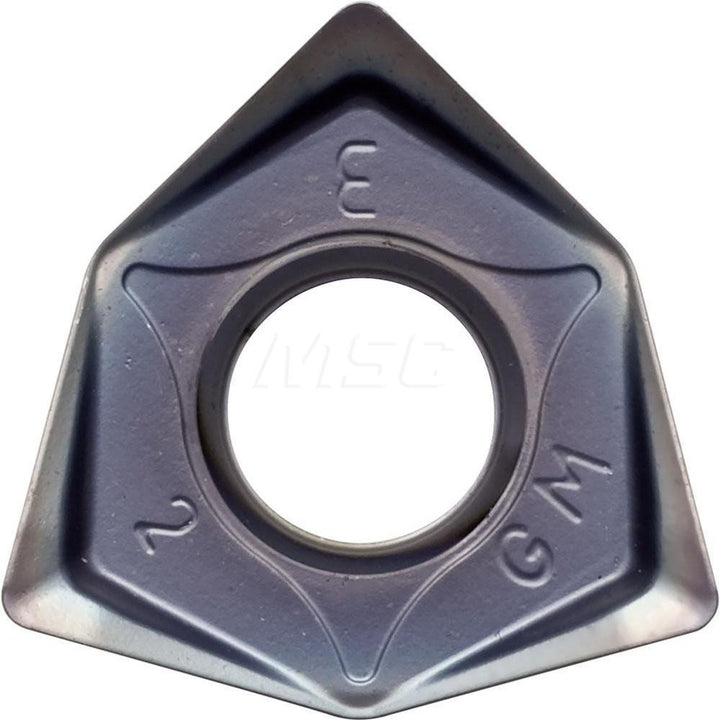

WNMU080608EN-GM Solid Carbide Insert, Grade PR1535, MEGACOAT NANO - Kyocera TLC09310
MFR# TLC09310ISO/ANSI# WNMU080608EN-GMCat# WNMU080608ENGMSeries MFWN
$27.91List $39.46
Save 29%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradePR1535
MaterialSolid Carbide
CoatingMEGACOAT NANO
Description
The Kyocera TLC09310 is a WNMU080608EN-GM solid carbide indexable insert, grade PR1535, MEGACOAT NANO coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi codeWNMU080608ENGMPR1535
Chip breakerEN-GM
Coating finishMEGACOAT NANO
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMFWN
Cutting edge styleHoned
Hole diameter0.2441
Included angle degree80
Inscribed circle0.5520
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size08
Insert size code080608
Insert styleWNMU
Iso codeWNMU080608EN-GM
Length0.5520
Length range0.5000 to 0.6000
Manufacturers catalog numberWNMU080608ENGM
Manufacturer gradePR1535
Material applicationStainless Steel; Superalloys & Titanium; Steel; Stainless Steel; Cast Iron; Superalloys & Titanium
Maximum depth of cut0.5208
Multi use toolYes
Number of cutting edges6
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2618
Thickness range0.2500 to 0.3500
Width0.5520
