Kyocera

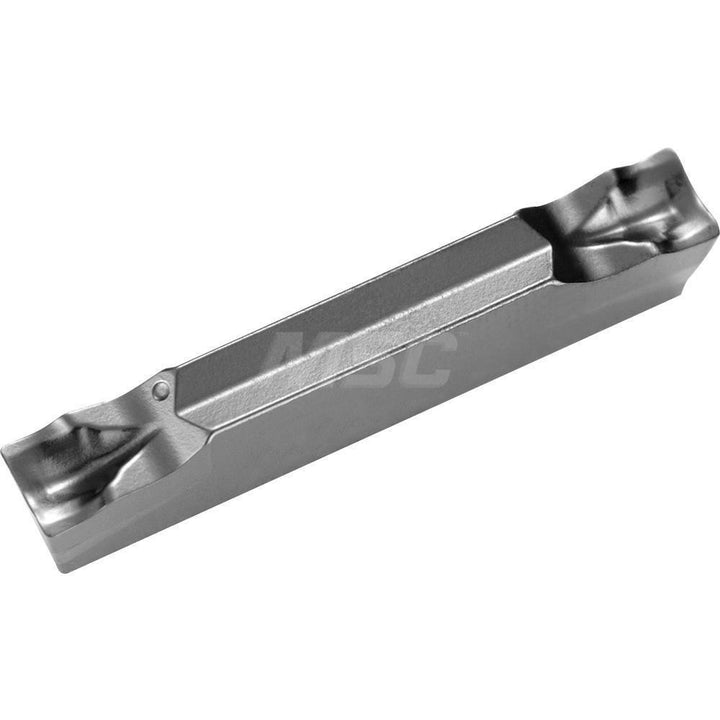

GDM3020N025PM Carbide Insert, Grade PR1535, MEGACOAT NANO - Kyocera TLC10530
MFR# TLC10530ISO/ANSI# GDM3020N025PMCat# GDM3020N-025PMSeries GD
$27.80List $39.31
Save 29%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
Sold in multiples of 10 — minimum order 10
Check price & lead time first →- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradePR1535
MaterialCarbide
CoatingMEGACOAT NANO
Description
The Kyocera TLC10530 is a GDM3020N025PM carbide indexable insert, grade PR1535, MEGACOAT NANO coated. Suited for superalloys.
Specifications
Ansi codeGDM3020N025PMPR1535
Chip breakerPM
Coating finishMEGACOAT NANO
Coating processPVD
Corner radius0.0098
Cutting height0.1693
Cutting width0.1181
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size3020
Insert size code3020
Insert styleGDM
Insert thickness0.0906
Iso codeGDM3020N025PM
Manufacturers catalog numberGDM3020N-025PM
Manufacturer gradePR1535
Measurement typeMetric
Multi use toolYes
Overall length0.7874
Primary workpiece materialSuperalloys
RakePositive
Rake angle3
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
