Kyocera

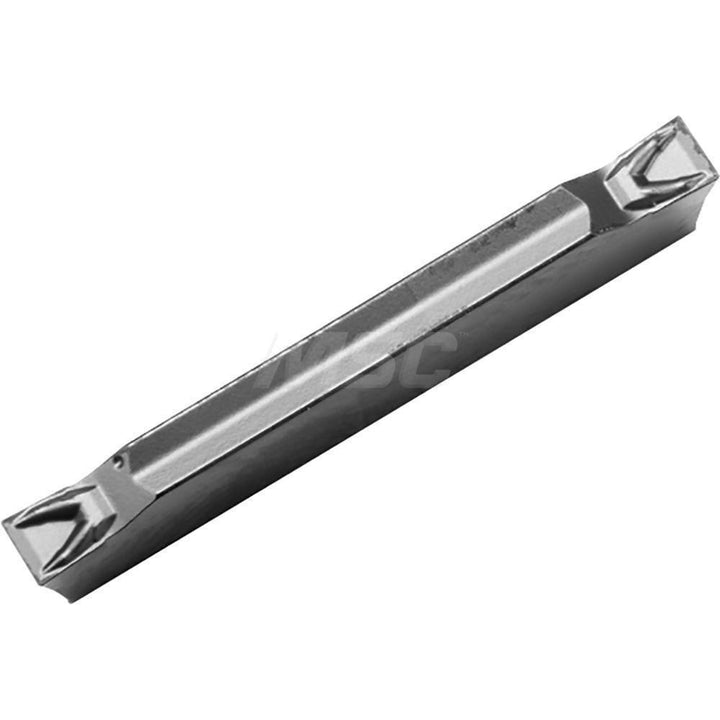

GDM2020N-010PQ Carbide Insert, Grade PR1535, MEGACOAT NANO - Kyocera TLC10900
MFR# TLC10900ISO/ANSI# GDM2020N-010PQCat# GDM2020N-010PQSeries GD
$25.73List $37.02
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradePR1535
MaterialCarbide
CoatingMEGACOAT NANO
Description
The Kyocera TLC10900 is a GDM2020N-010PQ carbide indexable insert, grade PR1535, MEGACOAT NANO coated. Suited for superalloys.
Specifications
Ansi codeGDM2020N010PQPR1535
Chip breakerPQ
Coating finishMEGACOAT NANO
Coating processPVD
Corner radius0.0039
Cutting height0.1693
Cutting width0.0787
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size2020
Insert size code2020
Insert styleGDM
Insert thickness0.0669
Iso codeGDM2020N-010PQ
Manufacturers catalog numberGDM2020N-010PQ
Manufacturer gradePR1535
Measurement typeMetric
Multi use toolYes
Overall length0.7874
Primary workpiece materialSuperalloys
RakePositive
Rake angle3
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
