Kyocera

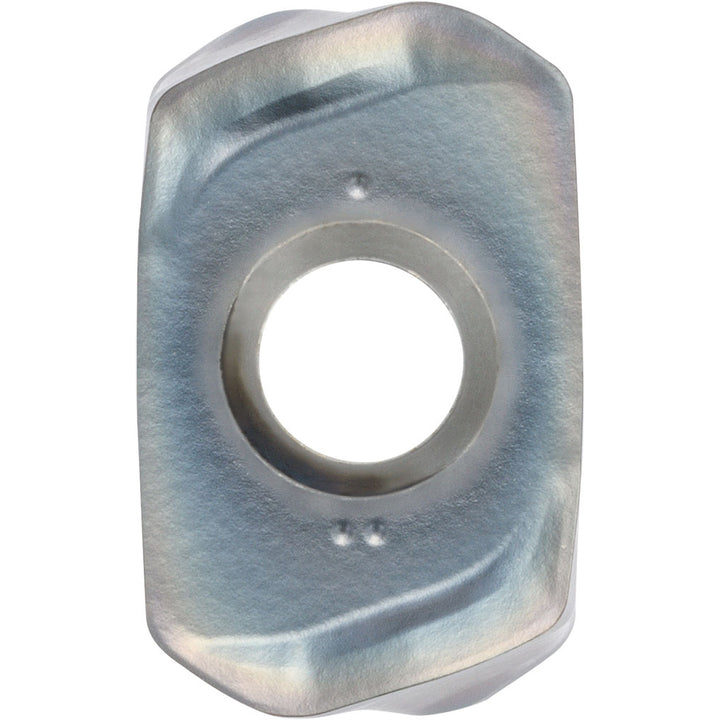

LOMU040410ER-GM Solid Carbide Insert, Grade PR1535, MEGACOAT NANO - Kyocera TLC40139
MFR# TLC40139ISO/ANSI# LOMU040410ER-GMCat# LOMU040410ERGMSeries MFHM
$25.48List $36.66
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradePR1535
MaterialSolid Carbide
CoatingMEGACOAT NANO
Description
The Kyocera TLC40139 is a LOMU040410ER-GM solid carbide indexable insert, grade PR1535, MEGACOAT NANO coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi codeLOMU040410ERGMPR1535
Chip breakerER-GM
Coating finishMEGACOAT NANO
Coating processPVD
Corner radius0.0390
Cutter series compatibilityMFH
Cutting edge styleHoned
Hole diameter0.1614
Included angle degree90
Inscribed circle0.3583
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size04
Insert size code040410
Insert styleLOMU
Iso codeLOMU040410ER-GM
Length0.5709
Length of cut (mm)14.50
Length range0.5000 to 0.6000
Manufacturers catalog numberLOMU040410ERGM
Manufacturer gradePR1535
Material applicationStainless Steel; Superalloys & Titanium; Steel; Cast Iron; Superalloys & Titanium
Maximum depth of cut0.5709
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Secondary workpiece materialSteel; Cast Iron; Superalloys
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1732
Thickness range0.1500 to 0.1750
Width0.3583
