Kyocera

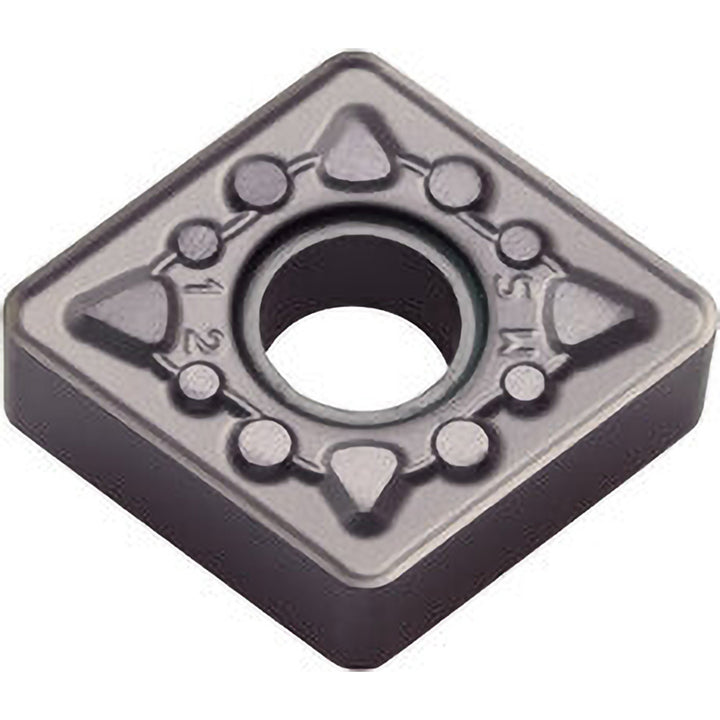

CNMG120408MS Carbide Insert, Grade PR1535, MEGACOAT NANO - Kyocera TLC50922
MFR# TLC50922ISO/ANSI# CNMG432MSPR1535Series ISOI
$13.39List $19.27
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradePR1535
MaterialCarbide
CoatingMEGACOAT NANO
Description
The Kyocera TLC50922 is a CNMG120408MS carbide indexable insert, grade PR1535, MEGACOAT NANO coated. Suited for stainless steel, superalloys.
Specifications
Chip breakerMS
Clearance codeN
Coating finishMEGACOAT NANO
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2032
Included angle80degree
Industry standard numberCNMG432MSPR1535
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408MS
Length range0.5000 - 0.6000
Manufacturers catalog numberTLC50922
Manufacturer gradePR1535
Material gradeM30; M40; S20; S30
Maximum depth of cut0.1667
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys
RakeNegative
Rake angle-19
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
