Kyocera

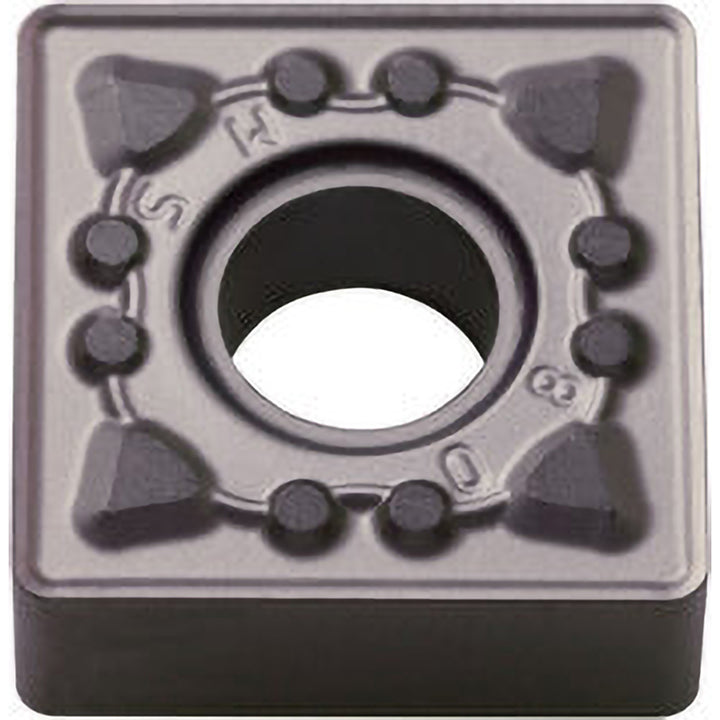

SNMG120412MS Carbide Insert, Grade PR1535, MEGACOAT NANO - Kyocera TLC55233
MFR# TLC55233ISO/ANSI# SNMG433MSPR1535Series ISOI
$13.83List $19.90
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradePR1535
MaterialCarbide
CoatingMEGACOAT NANO
Description
The Kyocera TLC55233 is a SNMG120412MS carbide indexable insert, grade PR1535, MEGACOAT NANO coated. Suited for stainless steel, superalloys.
Specifications
Chip breakerMS
Clearance codeN
Coating finishMEGACOAT NANO
Coating processPVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2032
Included angle90degree
Industry standard numberSNMG433MSPR1535
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code433
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG120412MS
Length range0.5000 - 0.6000
Manufacturers catalog numberTLC55233
Manufacturer gradePR1535
Material gradeM30; M40; S20; S30
Maximum depth of cut0.1667
Multi use applicationBoring; Chamfering; External Turning; Facing
Multi use toolYes
Number of cutting edges8
Primary workpiece materialStainless Steel; Superalloys
RakeNegative
Rake angle-19
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
