Kyocera

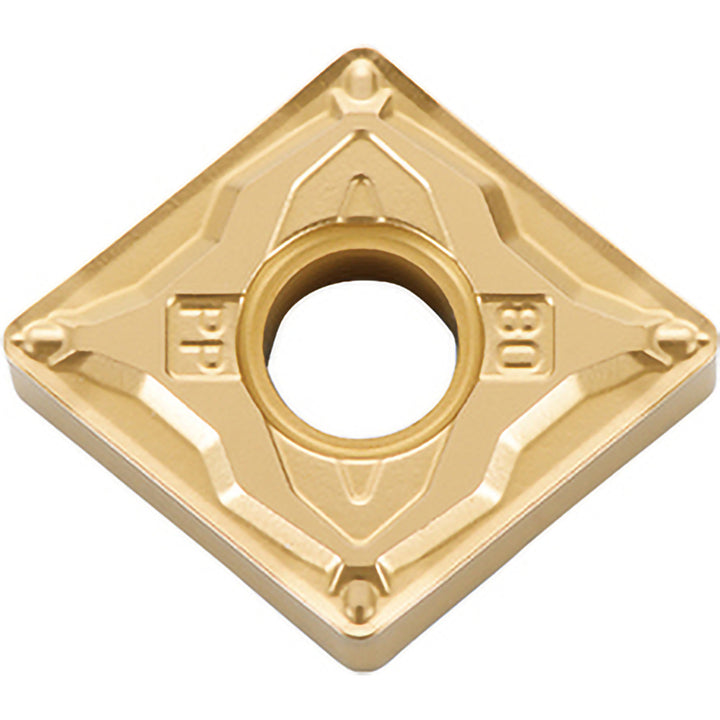

CNMG120404PP Cermet Insert, Grade PV720, TiCN - Kyocera TLD01792
MFR# TLD01792ISO/ANSI# CNMG431PPPV720Series ISOI
$13.13List $18.89
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradePV720
MaterialCermet
CoatingTiCN
Description
The Kyocera TLD01792 is a CNMG120404PP cermet indexable insert, grade PV720, TiCN coated. Suited for steel.
Specifications
Chip breakerPP
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2032
Included angle80degree
Industry standard numberCNMG431PPPV720
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCermet
Insert shapeDiamond 80
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120404PP
Length range0.5000 - 0.6000
Manufacturers catalog numberTLD01792
Manufacturer gradePV720
Material gradeP01; P10; P20
Maximum depth of cut0.1667
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle-10
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
