Kyocera

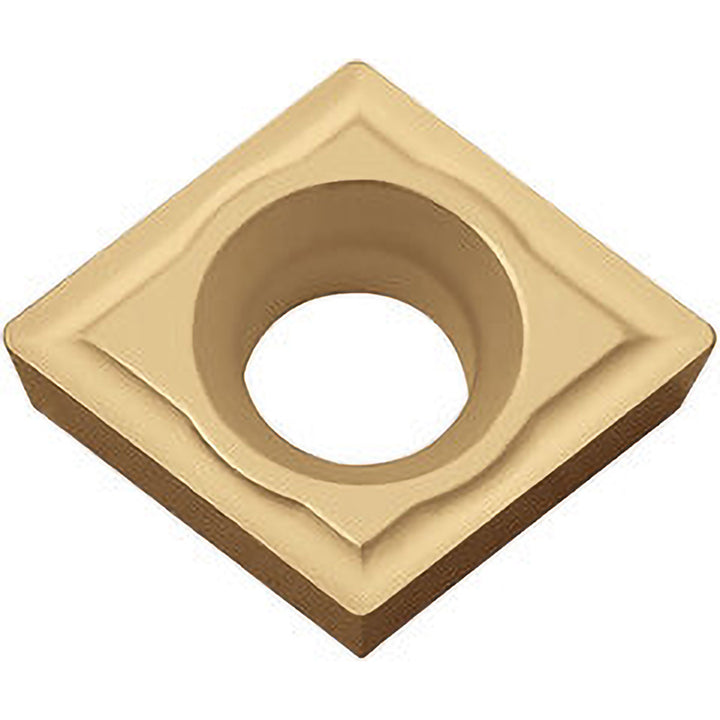

CPMH090304 Cermet Insert, Grade PV720, TiCN - Kyocera TLD02205
MFR# TLD02205ISO/ANSI# CPMH321PV720Series ISOI
$14.34List $20.28
Save 29%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradePV720
MaterialCermet
CoatingTiCN
Description
The Kyocera TLD02205 is a CPMH090304 cermet indexable insert, grade PV720, TiCN coated. Suited for steel.
Specifications
Clearance codeP
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Full radiusNo
Hole diameter0.1772
Included angle80degree
Industry standard numberCPMH321PV720
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCermet
Insert shapeDiamond 80
Insert size code321
Insert styleCPMH
Insert thickness in1/8
Iso codeCPMH090304
Length range0.3000 - 0.4000
Manufacturers catalog numberTLD02205
Manufacturer gradePV720
Material gradeP01; P10; P20
Maximum depth of cut0.1250
Multi use applicationBoring; Internal Facing
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle11
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
