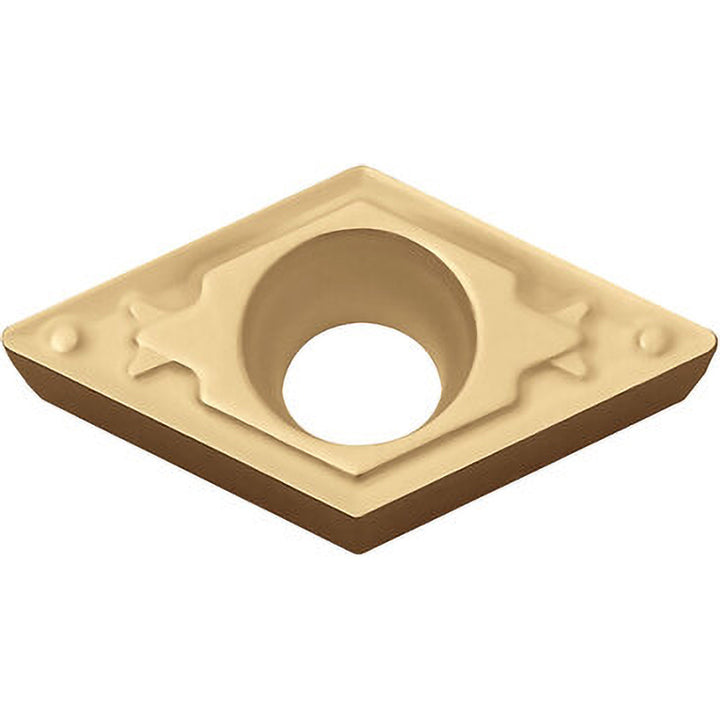

DCMT11T304HQ Cermet Insert, Grade PV720, TiCN - Kyocera TLD03531

Kyocera

DCMT11T304HQ Cermet Insert, Grade PV720, TiCN - Kyocera TLD03531

MFR# TLD03531ISO/ANSI# DCMT3251HQPV720Series ISOI

$15.73List $22.25 Save 29%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradePV720
MaterialCermet
CoatingTiCN

Description

The Kyocera TLD03531 is a DCMT11T304HQ cermet indexable insert, grade PV720, TiCN coated. Suited for steel.

Specifications

Chip breakerHQ
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle55degree
Industry standard numberDCMT3251HQPV720
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9140
Insert materialCermet
Insert shapeDiamond 55
Insert size code3251
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T304HQ
Length range0.7000 - 10.0000
Manufacturers catalog numberTLD03531
Manufacturer gradePV720
Material gradeP01; P10; P20
Maximum depth of cut0.3047
Multi use applicationBack Boring; Copying; External Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle15
Relief angle7
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
