Kyocera

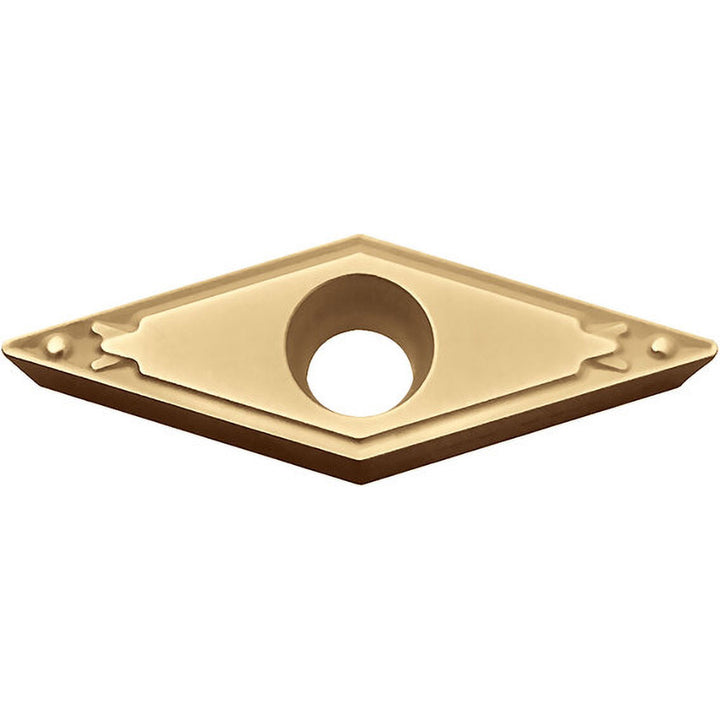

VBMT160404HQ Cermet Insert, Grade PV720, TiCN - Kyocera TLD07565
MFR# TLD07565ISO/ANSI# VBMT331HQPV720Series ISOI
$26.32List $37.22
Save 29%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradePV720
MaterialCermet
CoatingTiCN
Description
The Kyocera TLD07565 is a VBMT160404HQ cermet indexable insert, grade PV720, TiCN coated. Suited for steel.
Specifications
Chip breakerHQ
Clearance codeB
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle35degree
Industry standard numberVBMT331HQPV720
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3080
Insert materialCermet
Insert shapeDiamond 35
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160404HQ
Length range0.7000 - 10.0000
Manufacturers catalog numberTLD07565
Manufacturer gradePV720
Material gradeP01; P10; P20
Maximum depth of cut0.4360
Multi use applicationBack Boring; Copying; External Turning; Facing; Internal Facing; Profiling; Undercutting
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle15
Relief angle5
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
