Kyocera

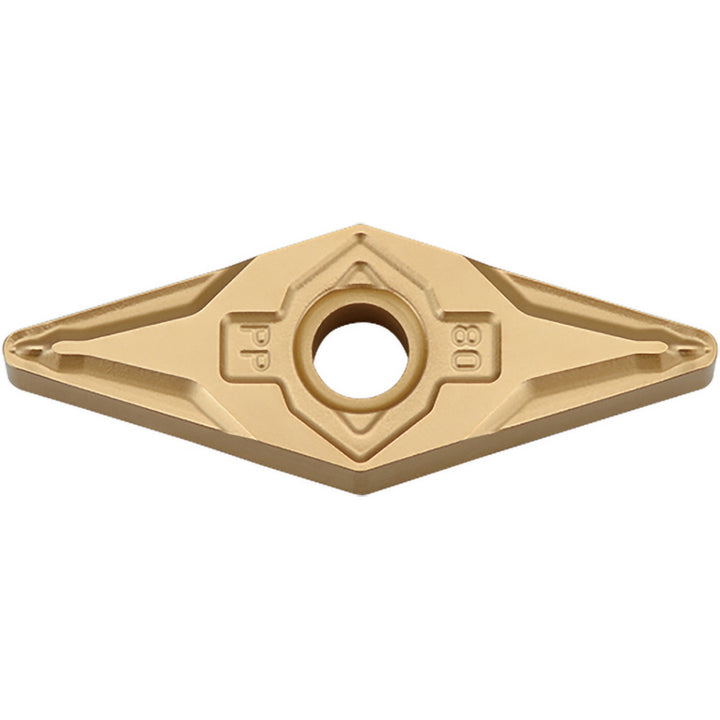

VNMG160404PP Cermet Insert, Grade PV720, TiCN - Kyocera TLD07862
MFR# TLD07862ISO/ANSI# VNMG331PPPV720Series ISOI
$19.55List $28.13
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradePV720
MaterialCermet
CoatingTiCN
Description
The Kyocera TLD07862 is a VNMG160404PP cermet indexable insert, grade PV720, TiCN coated. Suited for steel.
Specifications
Chip breakerPP
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle35
Industry standard numberVNMG331PPPV720
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3080
Insert materialCermet
Insert shapeDiamond 35
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160404PP
Length range0.7000 - 10.0000
Manufacturers catalog numberTLD07862
Manufacturer gradePV720
Material gradeP01; P10; P20
Maximum depth of cut0.4360
Multi use applicationCopying; External Turning; Facing; Undercutting
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle-10
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
