Kyocera

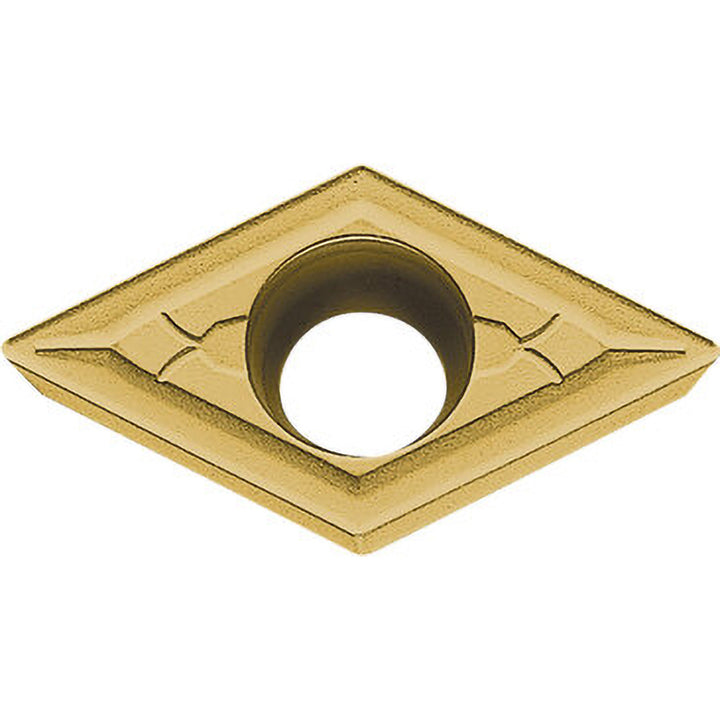

DCMT070202GK Cermet Insert, Grade PV720, TiCN - Kyocera TLD64038
MFR# TLD64038ISO/ANSI# DCMT21505GKPV720Series ISOI
$17.11List $24.62
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 55
GradePV720
MaterialCermet
CoatingTiCN
Description
The Kyocera TLD64038 is a DCMT070202GK cermet indexable insert, grade PV720, TiCN coated. Suited for steel.
Specifications
Chip breakerGK
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1102
Included angle55degree
Industry standard numberDCMT21505GKPV720
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.6140
Insert materialCermet
Insert shapeDiamond 55
Insert size code21505
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT070202GK
Length range0.6000 - 0.6500
Manufacturers catalog numberTLD64038
Manufacturer gradePV720
Material gradeP01; P10; P20
Maximum depth of cut0.2047
Multi use applicationBack Boring; Copying; External Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle17
Relief angle7
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
