Kyocera

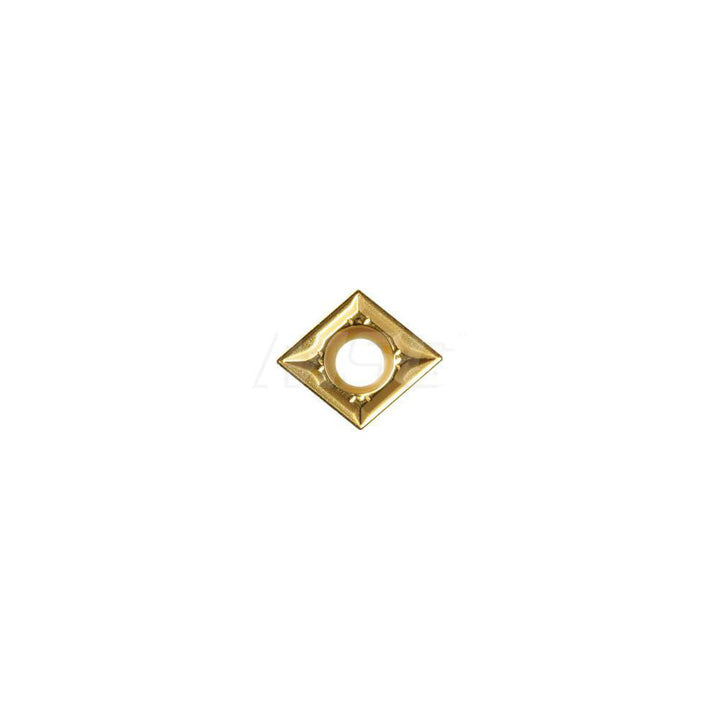

CCMT09T304GK Cermet Insert, Grade PV720, TiCN - Kyocera TLD64043
MFR# TLD64043ISO/ANSI# CCMT3251GKPV720Series ISOI
$16.25List $22.97
Save 29%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradePV720
MaterialCermet
CoatingTiCN
Description
The Kyocera TLD64043 is a CCMT09T304GK cermet indexable insert, grade PV720, TiCN coated. Suited for steel.
Specifications
Chip breakerGK
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle80degree
Industry standard numberCCMT3251GKPV720
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCermet
Insert shapeDiamond 80
Insert size code3251
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T304GK
Length range0.3000 - 0.4000
Manufacturers catalog numberTLD64043
Manufacturer gradePV720
Material gradeP01; P10; P20
Maximum depth of cut0.1250
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle17
Relief angle7
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
