Kyocera

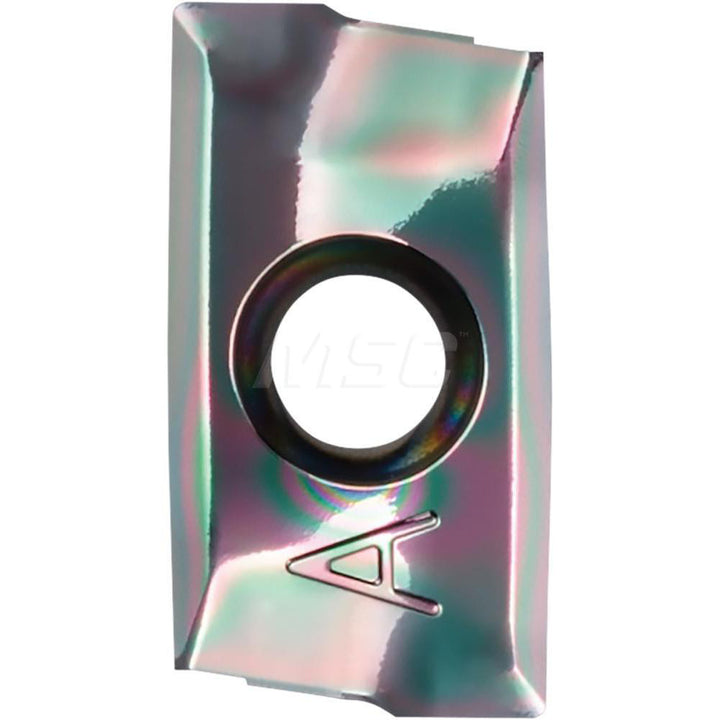

BDGT170408FR-JA Solid Carbide Insert, Grade PDL025 - Kyocera TLE00282
MFR# TLE00282ISO/ANSI# BDGT170408FR-JACat# BDGT170408FRJASeries MEC
$37.17List $53.48
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradePDL025
MaterialSolid Carbide
Description
The Kyocera TLE00282 is a BDGT170408FR-JA solid carbide indexable insert, grade PDL025. Suited for non-ferrous metal.
Specifications
Ansi codeBDGT170408FRJAPDL025
Chip breakerFR-JA
Coating processDLC
Corner radius in1/32
Cutter series compatibilityMEC
Cutting edge styleSharp
Hole diameter0.1732
Included angle degree82
Inscribed circle0.3780
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size17
Insert size code170408
Insert styleBDGT
Iso codeBDGT170408FR-JA
Length0.6693
Length range0.6500 to 0.7000
Manufacturers catalog numberBDGT170408FRJA
Manufacturer gradePDL025
Material applicationNon-Ferrous Metal
Maximum depth of cut0.6693
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle18.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1929
Thickness range0.1850 to 0.2000
Width0.3780
