Kyocera

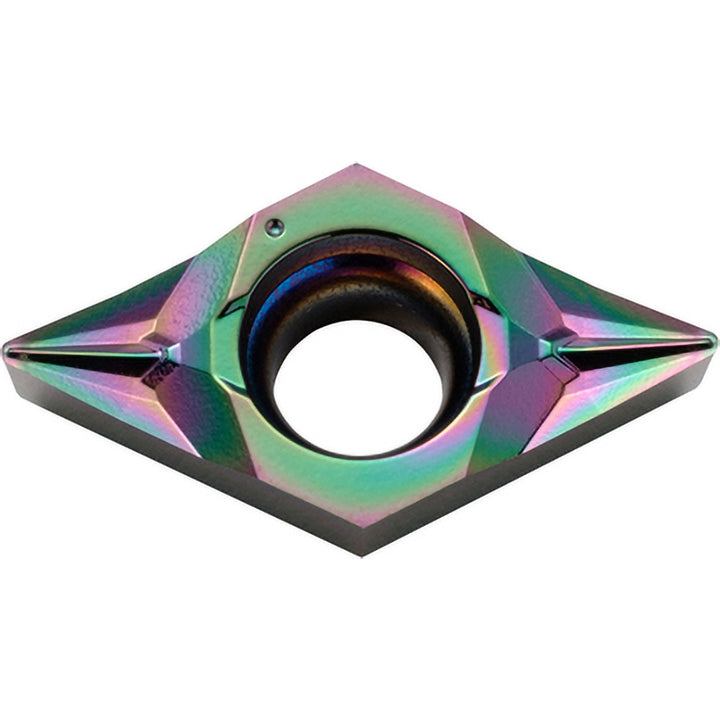

DCGT070204MFP-SK Carbide Insert, Grade PDL025 - Kyocera TLE03232
MFR# TLE03232ISO/ANSI# DCGT2151MFPSKPDL025Series ISOI
$16.87List $24.28
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradePDL025
MaterialCarbide
Description
The Kyocera TLE03232 is a DCGT070204MFP-SK carbide indexable insert, grade PDL025. Suited for non-ferrous metal.
Specifications
Chip breakerSK
Clearance codeC
Coating processDLC
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1102
Included angle55
Industry standard numberDCGT2151MFPSKPDL025
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.6140
Insert materialCarbide
Insert shapeDiamond
Insert size code2151
Insert styleDCGT
Insert thickness in3/32
Iso codeDCGT070204MFP-SK
Length range0.6000 - 0.6500
Manufacturers catalog numberTLE03232
Manufacturer gradePDL025
Material gradeN01; N10; N20
Maximum depth of cut0.2047
Multi use applicationBack Boring; Copying; External Turning; Sub-Spindle
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle18
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
