Kyocera

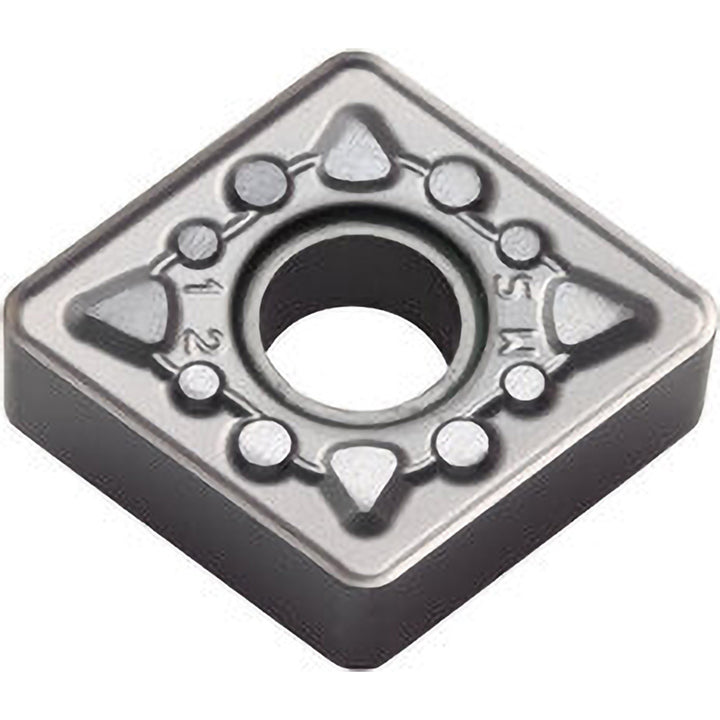

CNMG120412MS Carbide Insert, Grade PR005S, MEGACOAT HARD - Kyocera TLH00923
MFR# TLH00923ISO/ANSI# CNMG433MSPR005SSeries ISOI
$15.00List $21.20
Save 29%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradePR005S
MaterialCarbide
CoatingMEGACOAT HARD
Description
The Kyocera TLH00923 is a CNMG120412MS carbide indexable insert, grade PR005S, MEGACOAT HARD coated. Suited for superalloys.
Specifications
Chip breakerMS
Clearance codeN
Coating finishMEGACOAT HARD
Coating processPVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2032
Included angle80degree
Industry standard numberCNMG433MSPR005S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1-1/64
Insert materialCarbide
Insert shapeDiamond 80
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120412MS
Length range0.5000 - 0.6000
Manufacturers catalog numberTLH00923
Manufacturer gradePR005S
Material gradeS01; S10
Maximum depth of cut0.1667
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys
RakeNegative
Rake angle-19
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
