Kyocera

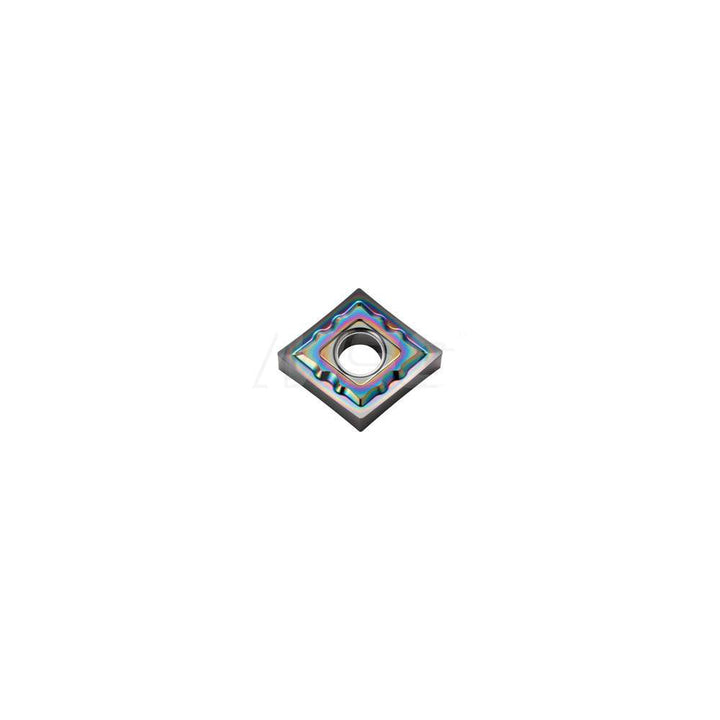

CNMG120404AH Carbide Insert, Grade PDL010 - Kyocera TLK04420
MFR# TLK04420ISO/ANSI# CNMG431AHPDL010Series ISOI
$21.80List $31.37
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradePDL010
MaterialCarbide
Description
The Kyocera TLK04420 is a CNMG120404AH carbide indexable insert, grade PDL010. Suited for non-ferrous metal.
Specifications
Chip breakerAH
Clearance codeN
Coating processDLC
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2032
Included angle80degree
Industry standard numberCNMG431AHPDL010
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeDiamond 80
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120404AH
Length range0.5000 - 0.6000
Manufacturers catalog numberTLK04420
Manufacturer gradePDL010
Material gradeN01; N10; N20
Maximum depth of cut0.0800
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Rake angle-9
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
