Kyocera

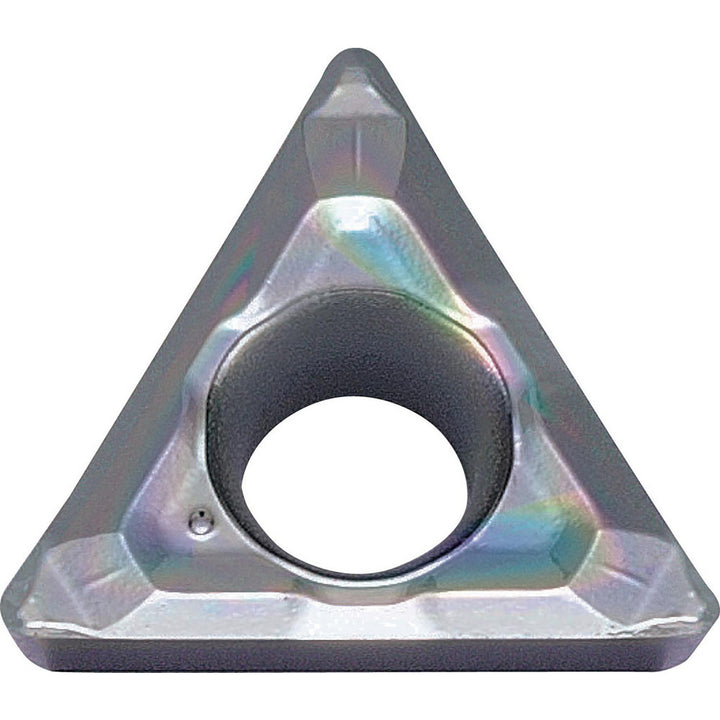

TPGT090204AP Carbide Insert, Grade PDL010 - Kyocera TLK04715
MFR# TLK04715ISO/ANSI# TPGT18151APPDL010Series ISOI
$25.82List $36.51
Save 29%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC7/32
ShapeTriangle
GradePDL010
MaterialCarbide
Description
The Kyocera TLK04715 is a TPGT090204AP carbide indexable insert, grade PDL010. Suited for non-ferrous metal.
Specifications
Chip breakerAP
Clearance codeP
Coating processDLC
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1181
Included angle60
Industry standard numberTPGT18151APPDL010
Inscribed circle in7/32
Insert handNeutral
Insert holding methodScrew
Insert length0.3546
Insert materialCarbide
Insert shapeTriangle
Insert size code18151
Insert styleTPGT
Insert thickness in3/32
Iso codeTPGT090204AP
Length range0.3000 - 0.4000
Manufacturers catalog numberTLK04715
Manufacturer gradePDL010
Material gradeN01; N10; N20
Maximum depth of cut0.0400
Multi use applicationBack Boring; Boring; Copying; External Turning; Internal Facing
Multi use toolYes
Number of cutting edges3
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle27
Relief angle11
Tolerance codeG
Width0.3546
Wiper edgeNo
