Kyocera

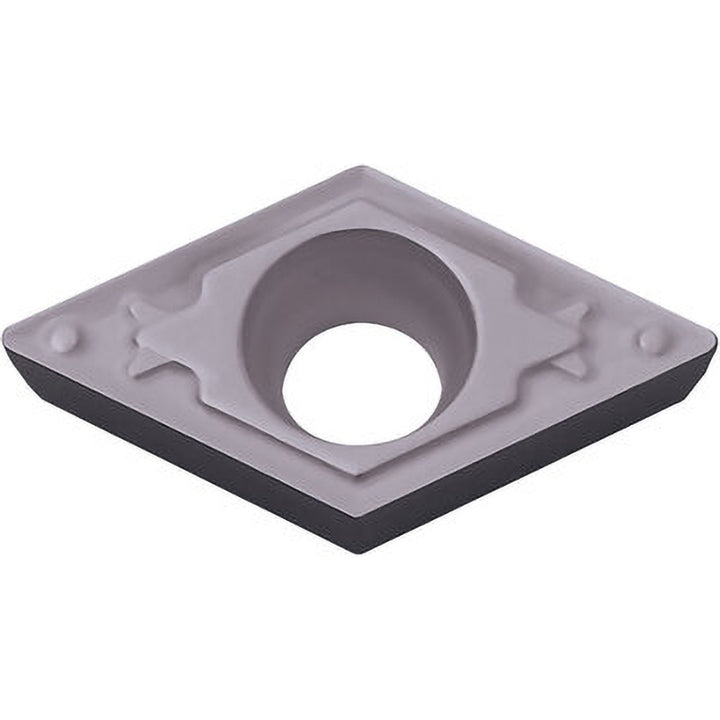

DCMT11T302HQ Carbide Insert, Grade PR1725, MEGACOAT NANO PLUS - Kyocera TLM00218
MFR# TLM00218ISO/ANSI# DCMT32505HQPR1725Series ISOI
$20.50List $29.50
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradePR1725
MaterialCarbide
CoatingMEGACOAT NANO PLUS
Description
The Kyocera TLM00218 is a DCMT11T302HQ carbide indexable insert, grade PR1725, MEGACOAT NANO PLUS coated. Suited for steel.
Specifications
Chip breakerHQ
Clearance codeC
Coating finishMEGACOAT NANO PLUS
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle55degree
Industry standard numberDCMT32505HQPR1725
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9140
Insert materialCarbide
Insert shapeDiamond 55
Insert size code32505
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T302HQ
Length range0.7000 - 10.0000
Manufacturers catalog numberTLM00218
Manufacturer gradePR1725
Material gradeP01; P10; P20; P30; M01; M10; M20; M30
Maximum depth of cut0.3047
Multi use applicationBack Boring; Copying; External Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle15
Relief angle7
Secondary workpiece materialSteel; Stainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
