Kyocera

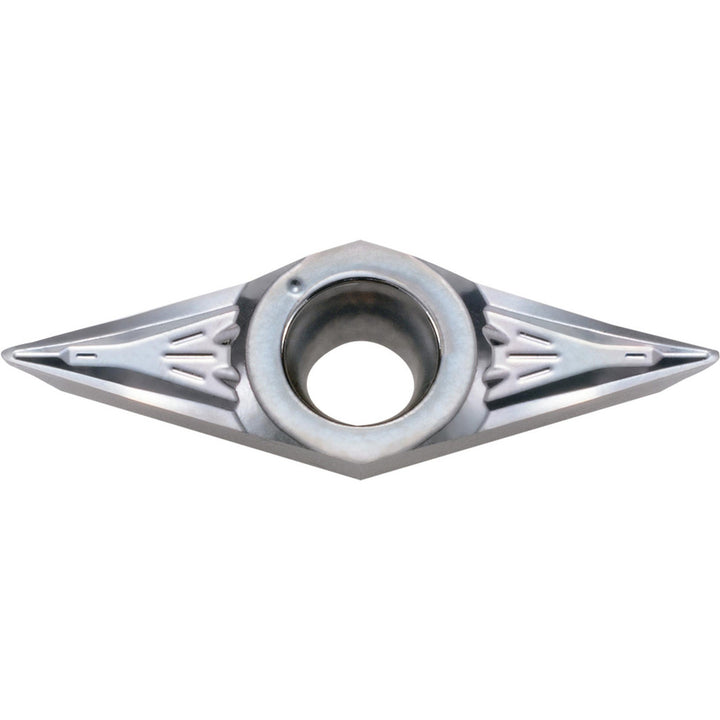

VCGT110302MFP-SKS Carbide Insert, Grade PR1725, MEGACOAT NANO PLUS - Kyocera TLM40233
MFR# TLM40233ISO/ANSI# VCGT2205MFPSKSPR1725Series ISOI
$27.32List $39.31
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 35
GradePR1725
MaterialCarbide
CoatingMEGACOAT NANO PLUS
Description
The Kyocera TLM40233 is a VCGT110302MFP-SKS carbide indexable insert, grade PR1725, MEGACOAT NANO PLUS coated. Suited for steel.
Specifications
Chip breakerSKS
Clearance codeC
Coating finishMEGACOAT NANO PLUS
Coating processPVD
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1102
Included angle35degree
Industry standard numberVCGT2205MFPSKSPR1725
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.8720
Insert materialCarbide
Insert shapeDiamond 35
Insert size code2205
Insert styleVCGT
Insert thickness in1/8
Iso codeVCGT110302MFP-SKS
Length range0.7000 - 10.0000
Manufacturers catalog numberTLM40233
Manufacturer gradePR1725
Material gradeP01; P10; P20; P30; M01; M10; M20; M30
Maximum depth of cut0.2907
Multi use applicationBack Boring; Copying; External Turning; Facing; Internal Facing; Profiling; Undercutting
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle11
Relief angle7
Secondary workpiece materialSteel; Stainless Steel
Tolerance codeG
Width in1/4in
Wiper edgeNo
