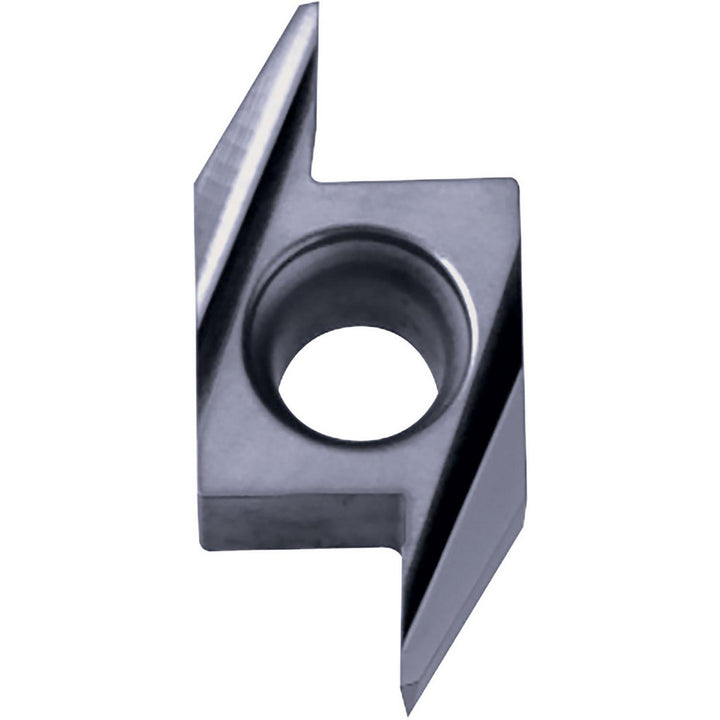

ABS15R4015M Carbide Insert, Grade PR1705, MEGACOAT NANO PLUS - Kyocera TLN40002

Kyocera

ABS15R4015M Carbide Insert, Grade PR1705, MEGACOAT NANO PLUS - Kyocera TLN40002

MFR# TLN40002ISO/ANSI# ABS15R4015MPR1705Series BTI

$44.08List $63.43 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeIrregular
GradePR1705
MaterialCarbide
CoatingMEGACOAT NANO PLUS

Description

The Kyocera TLN40002 is a ABS15R4015M carbide indexable insert, grade PR1705, MEGACOAT NANO PLUS coated. Suited for steel.

Specifications

Chip breakerCommon
Clearance codeB
Coating finishMEGACOAT NANO PLUS
Coating processPVD
Corner radius0.0590
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1181
Included angle75
Industry standard numberABS15R4015MPR1705
Inscribed circle0.2760
Insert handRight Hand
Insert holding methodScrew
Insert length0.6063
Insert materialCarbide
Insert shapeIrregular
Insert size code15-4015
Insert styleABS
Insert thickness in5/32
Iso codeABS15R4015M
Lead angle30
Length range0.6000 - 0.6500
Manufacturers catalog numberTLN40002
Manufacturer gradePR1705
Material gradeP01; P10
Maximum depth of cut0.1650
Multi use applicationBack Turning
Multi use toolNo
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle15
Secondary workpiece materialSteel; Stainless Steel
Tolerance codeS
Width0.2756
Wiper edgeNo
