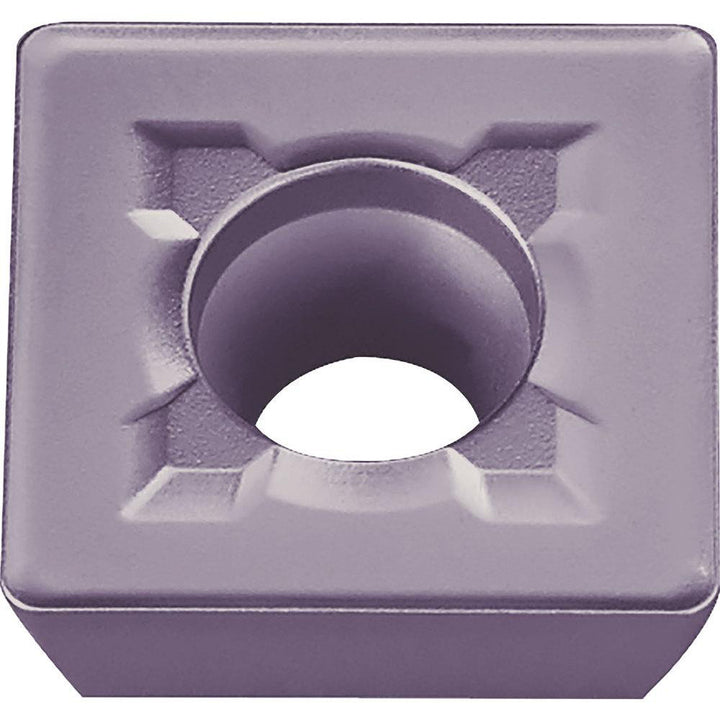

SDMT060304E-K Carbide Insert, Grade PR1835, MEGACOAT NANO EX - Kyocera TLU00066

Kyocera

SDMT060304E-K Carbide Insert, Grade PR1835, MEGACOAT NANO EX - Kyocera TLU00066

MFR# TLU00066ISO/ANSI# SDMT060304E-KCat# SDMT221EKPR1835Series METS Milling

$20.42List $29.38 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeSquare
GradePR1835
MaterialCarbide
CoatingMEGACOAT NANO EX

Description

The Kyocera TLU00066 is a SDMT060304E-K carbide indexable insert, grade PR1835, MEGACOAT NANO EX coated. Suited for austenitic stainless steel, precipitation hardened stainless steel, titanium alloy.

Specifications

Ansi codeSDMT221EKPR1835
Chip breakerE-K
Coating finishMEGACOAT NANO EX
Coating processPVD
Corner radius in1/64
Cutting directionNeutral
Cutting edge styleHoned
Hole diameter0.1102
Included angle degree90
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeSquare
Insert size221
Insert styleSDMT
Iso codeSDMT060304E-K
Manufacturers catalog numberSDMT221EKPR1835
Manufacturer gradePR1835
Multi use toolYes
Number of cutting edges4
Primary workpiece materialAustenitic Stainless Steel; Precipitation Hardened Stainless Steel; Titanium Alloy
RakePositive
Relief angle15.000
Secondary workpiece materialCarbon Steel; Alloy Steel; Mold Steel; Martensitic Stainless Steel
Single or double sided insertSingle
Thickness in1/8
Width0.2500
