Kyocera

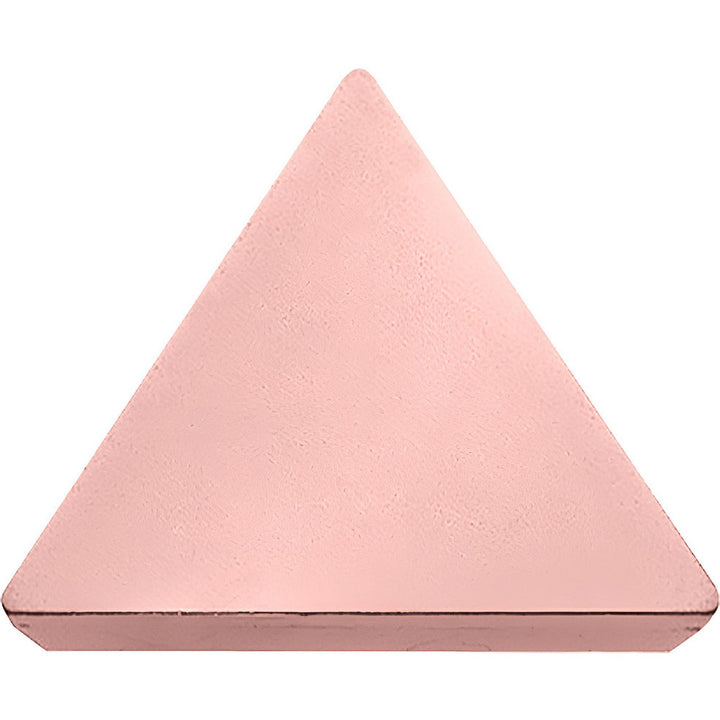

TPMN110304 Carbide Insert, Grade CA310, TiCN - Kyocera TMC06600
MFR# TMC06600ISO/ANSI# TPM221CA310Series ISOI
$7.73List $11.13
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeCA310
MaterialCarbide
CoatingTiCN
Description
The Kyocera TMC06600 is a TPMN110304 carbide indexable insert, grade CA310, TiCN coated. Suited for cast iron.
Specifications
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Full radiusNo
Included angle60
Industry standard numberTPM221CA310
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp
Insert length0.4334
Insert materialCarbide
Insert shapeTriangle
Insert size code221
Insert styleTPM
Insert thickness in1/8
Iso codeTPMN110304
Length range0.4000 - 0.5000
Manufacturers catalog numberTMC06600
Manufacturer gradeCA310
Material gradeK01; K10; K20
Maximum depth of cut0.1445
Multi use applicationBoring; Chamfering; External Turning; Facing
Multi use toolYes
Number of cutting edges3
Primary workpiece materialCast Iron
RakePositive
Relief angle11
Secondary workpiece materialCast Iron
Tolerance codeM
Width0.4334
Wiper edgeNo
