Kyocera

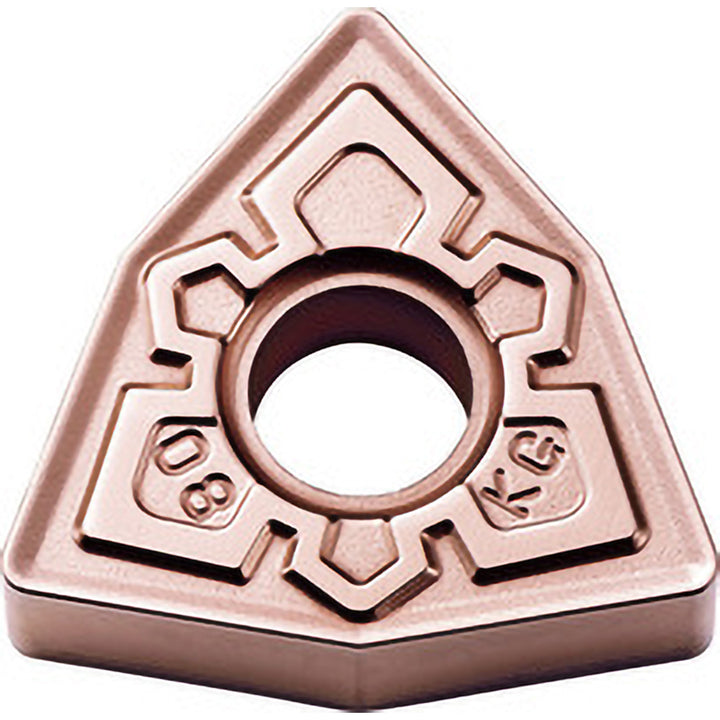

WNMG080408KG Carbide Insert, Grade CA310, TiCN - Kyocera TMC08662
MFR# TMC08662ISO/ANSI# WNMG432KGCA310Series ISOI
$13.37List $19.23
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon 80
GradeCA310
MaterialCarbide
CoatingTiCN
Description
The Kyocera TMC08662 is a WNMG080408KG carbide indexable insert, grade CA310, TiCN coated. Suited for cast iron.
Specifications
Chip breakerKG
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2032
Included angle80degree
Industry standard numberWNMG432KGCA310
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeTrigon 80
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408KG
Length range0.6500 - 0.7000
Manufacturers catalog numberTMC08662
Manufacturer gradeCA310
Material gradeK01; K10; K20
Maximum depth of cut0.2280
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges6
Primary workpiece materialCast Iron
RakeNegative
Rake angle-14
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeM
Width0.6840in
Wiper edgeNo
