Kyocera

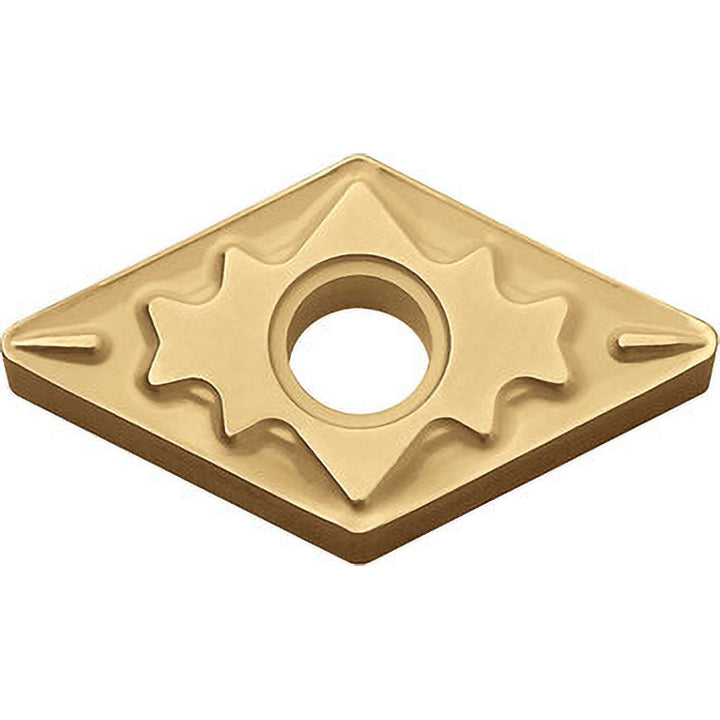

DNMG150404HQ Carbide Insert, Grade CA025P, TiCN - Kyocera TMH00162
MFR# TMH00162ISO/ANSI# DNMG431HQCA025PSeries ISOI
$20.40List $29.35
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeCA025P
MaterialCarbide
CoatingTiCN
Description
The Kyocera TMH00162 is a DNMG150404HQ carbide indexable insert, grade CA025P, TiCN coated. Suited for steel.
Specifications
Chip breakerHQ
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2032
Included angle55
Industry standard numberDNMG431HQCA025P
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.1820
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150404HQ
Length range0.7000 - 10.0000
Manufacturers catalog numberTMH00162
Manufacturer gradeCA025P
Material gradeP10; P20; P30; P40
Maximum depth of cut0.0590
Multi use applicationBoring; Copying; External Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle-15
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
