Kyocera

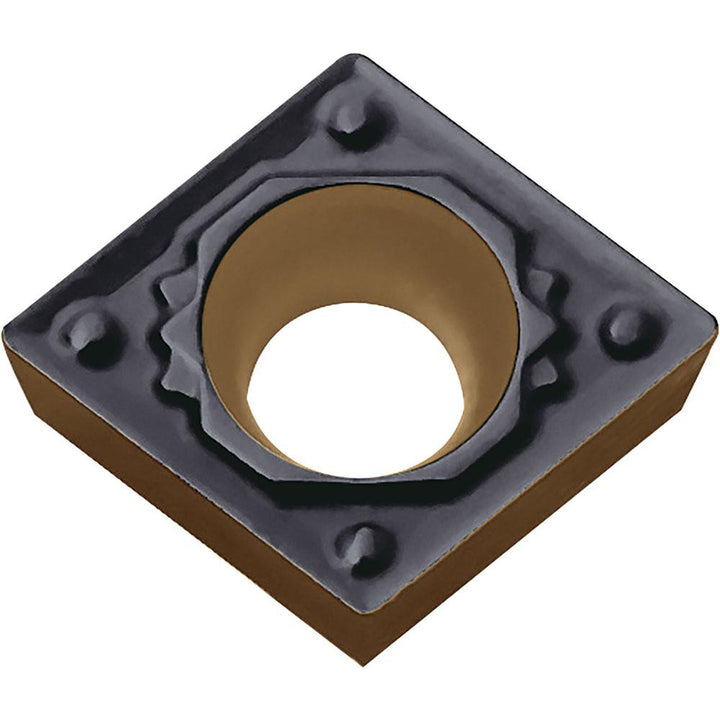

CCMT09T308HQ Carbide Insert, Grade CA125P, TiCN/Al2O3/TiN - Kyocera TMK00325
MFR# TMK00325ISO/ANSI# CCMT09T308HQCat# CCMT3252HQCA125PSeries ISO Insert
$16.69List $23.60
Save 29%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeCA125P
MaterialCarbide
CoatingTiCN/Al2O3/TiN
Description
The Kyocera TMK00325 is a CCMT09T308HQ carbide indexable insert, grade CA125P, TiCN/Al2O3/TiN coated. Suited for carbon steel, alloy steel.
Specifications
Chip breakerHQ
Clearance codeC
Coating finishTiCN/Al2O3/TiN
Coating processCVD
Corner radius in1/32
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew; Clamp
Insert materialCarbide
Insert shapeDiamond
Insert size code3252
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T308HQ
Manufacturers catalog numberCCMT3252HQCA125P
Manufacturer gradeCA125P
Multi use applicationBoring; External Turning; Facing; Internal Facing
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCarbon Steel; Alloy Steel
RakePositive
Relief angle7.000
Tolerance codeM
Wiper edgeNo
