Kyocera

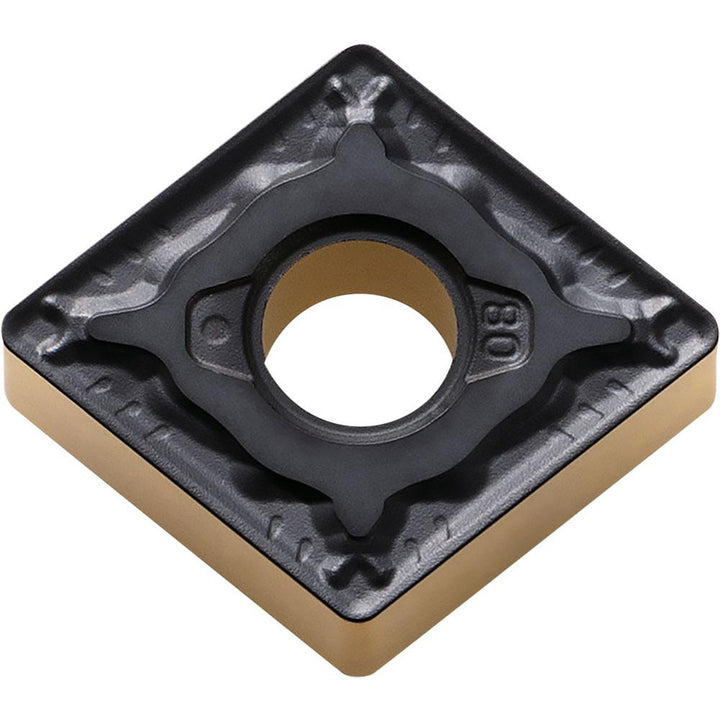

CNMG120408PMG Carbide Insert, Grade CA115P, TiCN/Al2O3/TiN - Kyocera TML00475
MFR# TML00475ISO/ANSI# CNMG120408PMGCat# CNMG432PMGCA115PSeries ISO Insert
$12.62List $18.17
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeCA115P
MaterialCarbide
CoatingTiCN/Al2O3/TiN
Description
The Kyocera TML00475 is a CNMG120408PMG carbide indexable insert, grade CA115P, TiCN/Al2O3/TiN coated. Suited for carbon steel, alloy steel.
Specifications
Chip breakerNone
Clearance codeN
Coating finishTiCN/Al2O3/TiN
Coating processCVD
Corner radius in1/32
Hole diameter0.2032
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew; Clamp
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408PMG
Manufacturers catalog numberCNMG432PMGCA115P
Manufacturer gradeCA115P
Multi use applicationBoring; External Turning; Facing; Internal Facing
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCarbon Steel; Alloy Steel
RakeNegative
Relief angle0.000
Tolerance codeM
Wiper edgeNo
