Kyocera

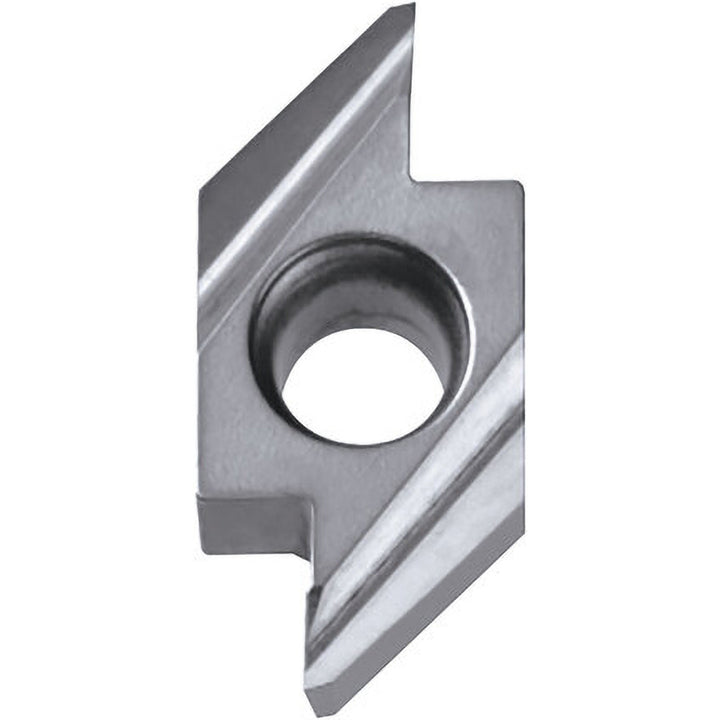

ABW15R4015 Cermet Insert, Grade TC60, NbC - Kyocera TSB01661
MFR# TSB01661ISO/ANSI# ABW15R4015TC60Series APBT
$28.27List $40.69
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeIrregular
GradeTC60
MaterialCermet
CoatingNbC
Description
The Kyocera TSB01661 is a ABW15R4015 cermet indexable insert, grade TC60, NbC coated. Suited for steel.
Specifications
Chip breakerCommon
Clearance codeB
Coating finishNbC
Coating processUncoated
Corner radius0.0590
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1181
Included angle75degree
Industry standard numberABW15R4015TC60
Inscribed circle0.2760
Insert handRight Hand
Insert holding methodScrew
Insert length0.6063
Insert materialCermet
Insert shapeIrregular
Insert size code15-4015
Insert styleABW
Insert thickness in5/32
Iso codeABW15R4015
Lead angle45degree
Length range0.6000 - 0.6500
Manufacturers catalog numberTSB01661
Manufacturer gradeTC60
Material gradeP10; P20; M10; M20
Maximum depth of cut0.1650
Multi use applicationBack Turning
Multi use toolNo
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle15
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeW
Width0.2756in
Wiper edgeNo
