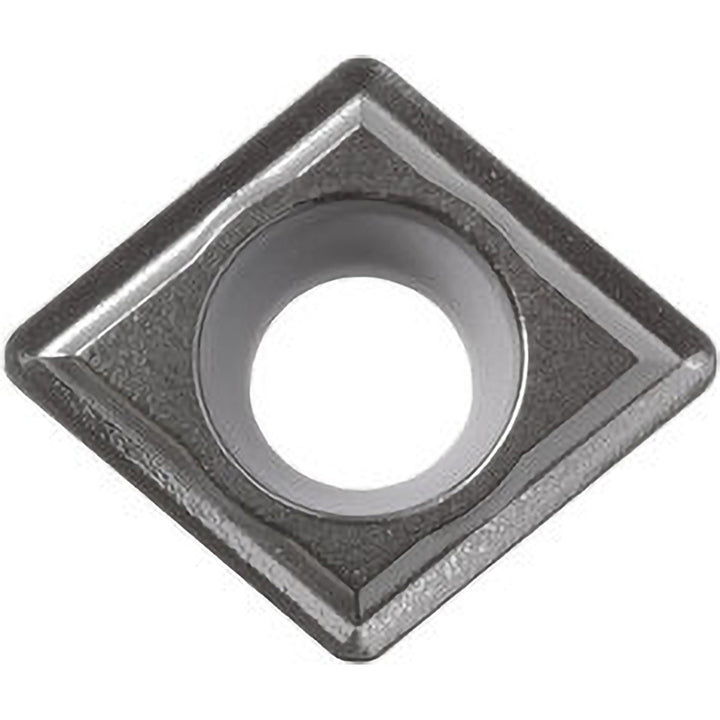

CCGT09T304 Cermet Insert, Grade TN60, TiCN - Kyocera TSJ00220

Kyocera

CCGT09T304 Cermet Insert, Grade TN60, TiCN - Kyocera TSJ00220

MFR# TSJ00220ISO/ANSI# CCGT3251TN60Series ISOI

$16.68List $24.00 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeTN60
MaterialCermet
CoatingTiCN

Description

The Kyocera TSJ00220 is a CCGT09T304 cermet indexable insert, grade TN60, TiCN coated. Suited for steel.

Specifications

Clearance codeC
Coating finishTiCN
Coating processUncoated
Corner radius in1/64
Full radiusNo
Hole diameter0.1732
Included angle80degree
Industry standard numberCCGT3251TN60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCermet
Insert shapeDiamond 80
Insert size code3251
Insert styleCCGT
Insert thickness in5/32
Iso codeCCGT09T304
Length range0.3000 - 0.4000
Manufacturers catalog numberTSJ00220
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.1250
Multi use applicationBoring; External Turning; Facing; Internal Facing; Sub-Spindle
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
