Kyocera

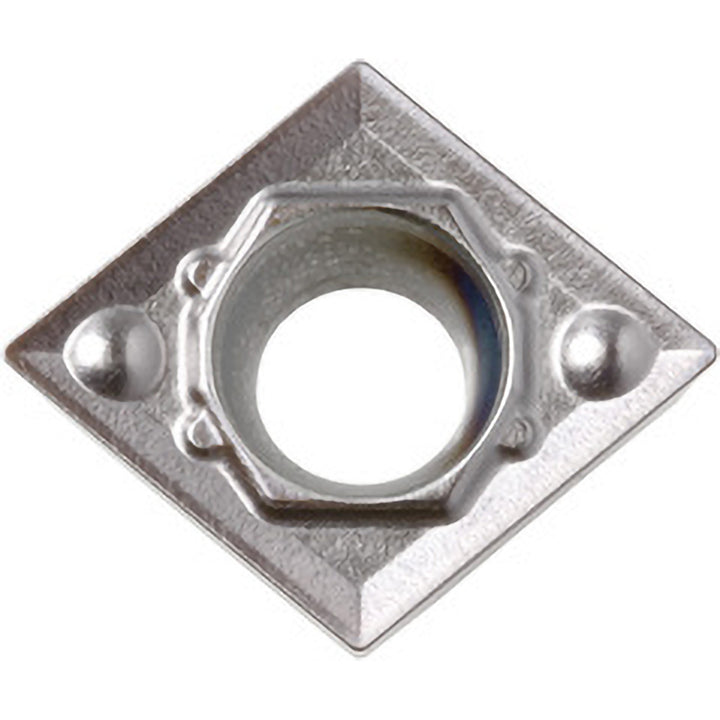

CCMT060204HQ Cermet Insert, Grade TN60, TiCN - Kyocera TSJ00244
MFR# TSJ00244ISO/ANSI# CCMT2151HQTN60Series ISOI
$13.59List $19.56
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeTN60
MaterialCermet
CoatingTiCN
Description
The Kyocera TSJ00244 is a CCMT060204HQ cermet indexable insert, grade TN60, TiCN coated. Suited for steel.
Specifications
Chip breakerHQ
Clearance codeC
Coating finishTiCN
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1102
Included angle80degree
Industry standard numberCCMT2151HQTN60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length in1/4
Insert materialCermet
Insert shapeDiamond 80
Insert size code2151
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060204HQ
Length range0.0000 - 0.3000
Manufacturers catalog numberTSJ00244
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.0833
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle15
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
