Kyocera

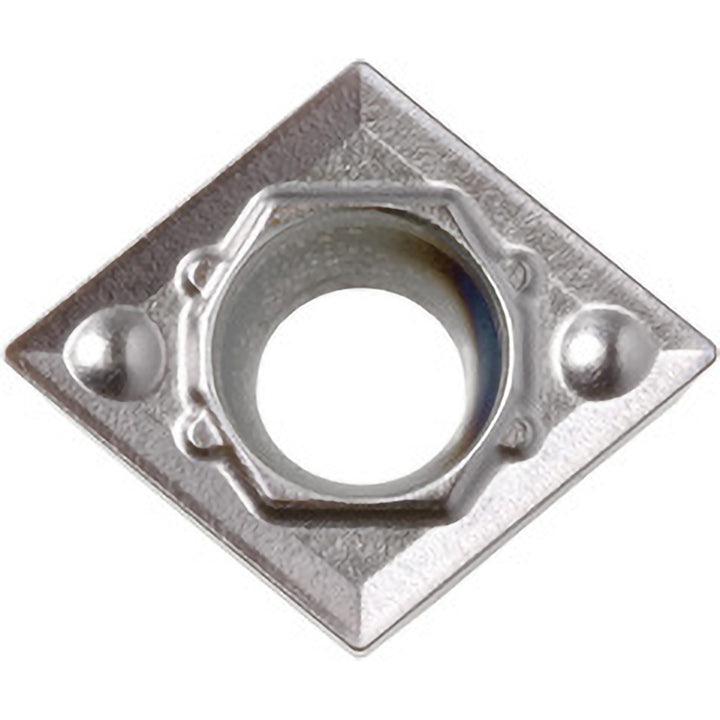

CCMT09T308HQ Cermet Insert, Grade TN60, TiCN - Kyocera TSJ00252
MFR# TSJ00252ISO/ANSI# CCMT3252HQTN60Series ISOI
$14.75List $21.22
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeTN60
MaterialCermet
CoatingTiCN
Description
The Kyocera TSJ00252 is a CCMT09T308HQ cermet indexable insert, grade TN60, TiCN coated. Suited for steel.
Specifications
Chip breakerHQ
Clearance codeC
Coating finishTiCN
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle80degree
Industry standard numberCCMT3252HQTN60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCermet
Insert shapeDiamond 80
Insert size code3252
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T308HQ
Length range0.3000 - 0.4000
Manufacturers catalog numberTSJ00252
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.1250
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle15
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
