Kyocera

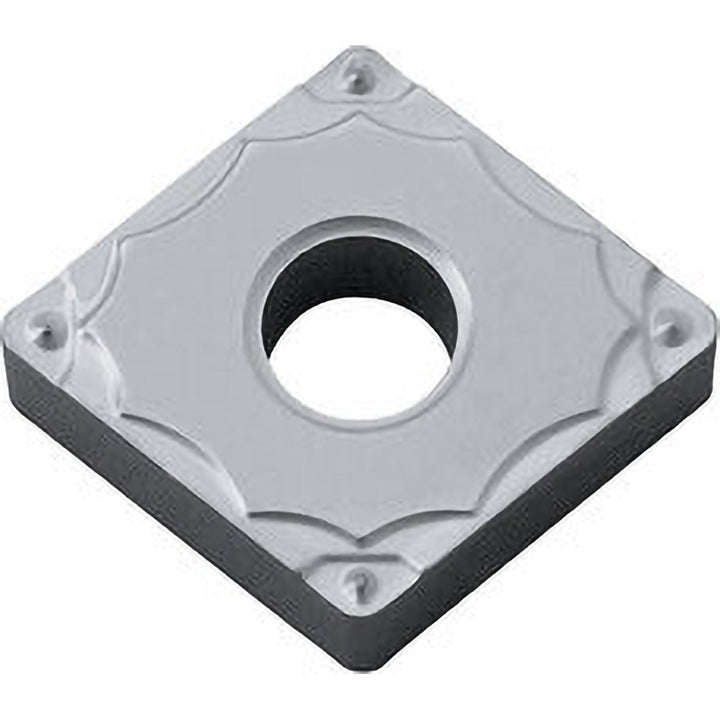

CNMG120402GP Cermet Insert, Grade TN60, TiCN - Kyocera TSJ00259
MFR# TSJ00259ISO/ANSI# CNMG4305GPTN60Series ISOI
$12.01List $17.29
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeTN60
MaterialCermet
CoatingTiCN
Description
The Kyocera TSJ00259 is a CNMG120402GP cermet indexable insert, grade TN60, TiCN coated. Suited for steel.
Specifications
Chip breakerGP
Clearance codeN
Coating finishTiCN
Coating processUncoated
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2032
Included angle80degree
Industry standard numberCNMG4305GPTN60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCermet
Insert shapeDiamond 80
Insert size code4305
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120402GP
Length range0.5000 - 0.6000
Manufacturers catalog numberTSJ00259
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.1667
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle-10
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
